Belden 8451-BY-FOOT-BLACK
Paired - Audio, Control, and Instrument Cable, 22 AWG, By the Foot (Black)

OUR PART #:  8451-BY-FOOT-BLACK

The Belden 8451 cable is 22 AWG stranded (7x30) tinned copper conductors, twisted pair, polypropylene insulation...
Learn More
Our Price: $0.26

5.0 / 5

★★★★★ 1 Review. Write Yours

Related Products

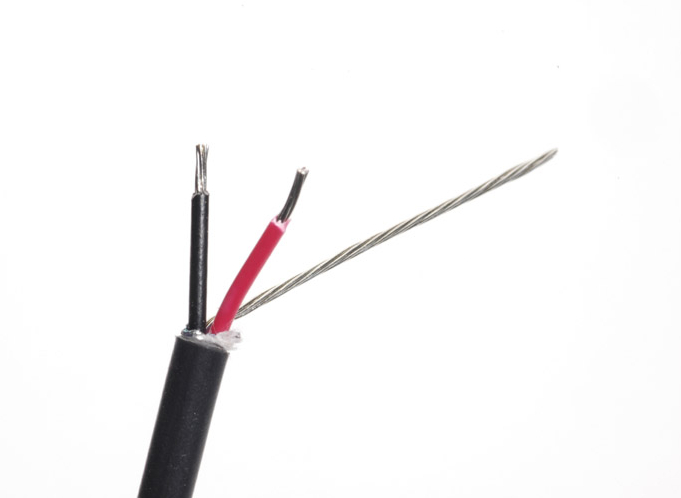

The Belden 8451 cable is 22 AWG stranded (7x30) tinned copper conductors, twisted pair, polypropylene insulation, overall 100% Beldfoil® shield, 22 AWG stranded tinned copper drain wire, paper wrap, PVC jacket.

NOTE: Actual product may vary in appearance and specification. For more information on this and other products, please contact your Sales Pro.

Belden 8451 Specifications:

  • Conductor Pairs: 1
  • Conductors: 2
  • AWG: 22
  • Stranding: 7 x 30
  • Conductor Material: TC - Tinned Copper
  • Insulation Material: PE - Polyethylene
  • Nom. Insulation Wall Thickness: 0.008"
  • Lay Length: 1.75"
  • Twists / ft: 6.86
  • Outer Shield Material Trade Name: Beldfoil (Z-Fold)
  • Outer Shield Type: Tape
  • Outer Shield Material: Aluminum Foil-Polyester Tape
  • Outer Shield % Coverage: 100%
  • Outer Shield Drain Wire AWG: 22
  • Outer Shield Drain Wire Stranding: 7 x 30
  • Outer Shield Drain Wire Conductor Material: TC - Tinned Copper
  • Outer Jacket Material: PVC - Polyvinyl Chloride
  • Outer Jacket Nominal Wall Thickness: 0.2"
  • Overall Nominal Diameter: 0.138"
  • Operating Temperature Range: -20º to 75ºC
  • Bulk Cable Weight: 14.1 lbs. (1000 ft.)
  • Max. Recommended Pulling Tension: 27 lbs.
  • Min. Bend Radius (Install): 1.4"
  • Nom. Characteristic Impedance: 45 ohm
  • Nom. Inductance: 0.17 microH/ft
  • Nom. Capacitance Conductor to Conductor @ 1 kHz: 34 pF/ft
  • Nom. Cap. Cond. to other Cond. & Shield @ 1 kHz: 67pF/ft
  • Nom. Conductor DC Resistance @ 20ºC: 14.5 ohm / 1000 ft.
  • Nom. OUter Shield DC Resistance @ 20ºC: 14.1 ohm / 1000 ft.
  • Max. Operating Voltage - UL: 300 V RMS
  • Max. Recommended Current: 2.9 Amps per conductor @ 25ºC
