Rolls RM68 6-Channel, 2-Zone Mixer, 1 Rack Unit

OUR PART #: RM68 MFR #: rm68

Copied to clipboard

The Rolls RM68 is designed to mix up to three microphones with three stereo sources, and send them in any combination to two separate zones. ...Read more

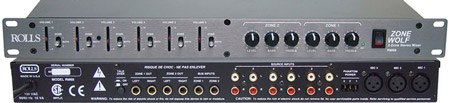

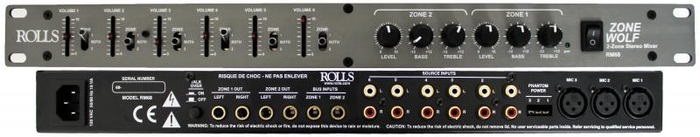

Rolls RM68 6-Channel, 2-Zone Mixer, 1 Rack Unit Image 1
Rolls RM68 6-Channel, 2-Zone Mixer, 1 Rack Unit
No longer available at Full Compass
We've left this page up for reference only.

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Product Overview

The Rolls RM68 is designed to mix up to three microphones with three stereo sources, and send them in any combination to two separate zones. It's versatile inputs and outputs as well as commercial grade design make it an important problem solver in many audio situations such as restaurants, churches, schools, etc. It also works great as a HiFi preamp.

Rolls RM68 Features:

  • 2-Zones / 6-Assignable RCA Inputs
  • 3 XLR Inputs w/Phantom Power
  • Bass & Treble Control on each Zone
  • Talkover on Mic 1 to Assigned Zone
  • 1/4" TRS Outputs

Rolls RM68 Specifications:

  • Input Impedance: Mic: 600 Ohms XLR Bal.
  • Source: 22kOhms gold plated RCA
  • Output Impedance: 50Ohms
  • Max Input Level: Mic: -14 dBV bal.
  • Source: +24 dB
  • Output Level: +17 dBV max
  • Phantom Power: +12 VDC
  • Max Gain: 60 dB mic, 26 dB source
  • Tone Controls: 12 dB boost/cut, 250Hz center
  • S/N Ratio: 106 dB
  • THD: < .003%
  • CMRR: 52 dB mic
  • Dimensions: 19" x 1.75" x 6" (48.3 x 4.5 x 15cm)
