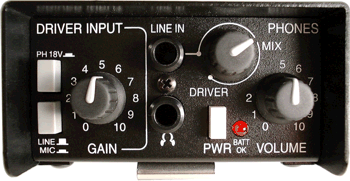

Whirlwind MD-1
Portable Mic/Line Driver, Headphone Monitor

OUR PART #  MD-1-WHIRLWIND

Our Price: $354.00
List Price: $546.26
You save 35%! (Low Price Guarantee)
Usually ships in 7-14 business days.
Need it sooner? Call us!

The industry's standard for parabolic, boom, and interview mic situations, the MD-1 is the ideal mic preamp for those who demand studio quality in a rugged, battery operated package. A broadcast quality performs alongside a high-performance input transformer to feed the MD-1 high-current line driver and headphone monitor amp. An input pad and level control let you adjust for almost any mic or line level signal (up to 60dB of gain). Or pass the unprocessed signal to the output (loop thru) while monitoring it with headphones.

Additional features:

  • A separate balanced line level Aux input to the headphone amp formonitoring a program mix, a console foldback or a director's cues
  • Headphone volume control and a separate MIX control allow you to adjustthe headphone balance between the mic driver section and Aux input
  • Built-in 18V phantom power (switchable)
  • Steel case with belt clip resists abuse
  • Two alkaline 9V batteries are mounted in slide out trays for easy access

Specifications

  • Input Impedance: Mic Mode - 1.5 kOhms / Line Mode: 10 kOhms
  • Output Impedance: 600 Ohms
  • Max Input Signal: Mic Mode: -4dBm / Line Mode: +12dBm
  • Frequency Response: +/-3dBm, 6Hz - 25kHz / -2dBm @ 20Hz / -1dBm @ 20kHz
  • Maximum Ouput Level: +15dB into 2 kOhms / +26dB into 10 kOhms, +34dB into 100 kOhms
  • Phantom Power: +18VDC
  • Power Requirements: (2) 9V alkaline batteries

Whirlwind MD-1
Portable Mic/Line Driver, Headphone Monitor

OUR PART #  MD-1-WHIRLWIND

Product Information:

The industry's standard for parabolic, boom, and interview mic situations, the MD-1 is the ideal mic preamp for those who demand studio quality in a rugged, battery operated package. A broadcast quality performs alongside a high-performance input transformer to feed the MD-1 high-current line driver and headphone monitor amp. An input pad and level control let you adjust for almost any mic or line level signal (up to 60dB of gain). Or pass the unprocessed signal to the output (loop thru) while monitoring it with headphones.

Additional features:

  • A separate balanced line level Aux input to the headphone amp formonitoring a program mix, a console foldback or a director's cues
  • Headphone volume control and a separate MIX control allow you to adjustthe headphone balance between the mic driver section and Aux input
  • Built-in 18V phantom power (switchable)
  • Steel case with belt clip resists abuse
  • Two alkaline 9V batteries are mounted in slide out trays for easy access

Specifications

  • Input Impedance: Mic Mode - 1.5 kOhms / Line Mode: 10 kOhms
  • Output Impedance: 600 Ohms
  • Max Input Signal: Mic Mode: -4dBm / Line Mode: +12dBm
  • Frequency Response: +/-3dBm, 6Hz - 25kHz / -2dBm @ 20Hz / -1dBm @ 20kHz
  • Maximum Ouput Level: +15dB into 2 kOhms / +26dB into 10 kOhms, +34dB into 100 kOhms
  • Phantom Power: +18VDC
  • Power Requirements: (2) 9V alkaline batteries
