Product Overview

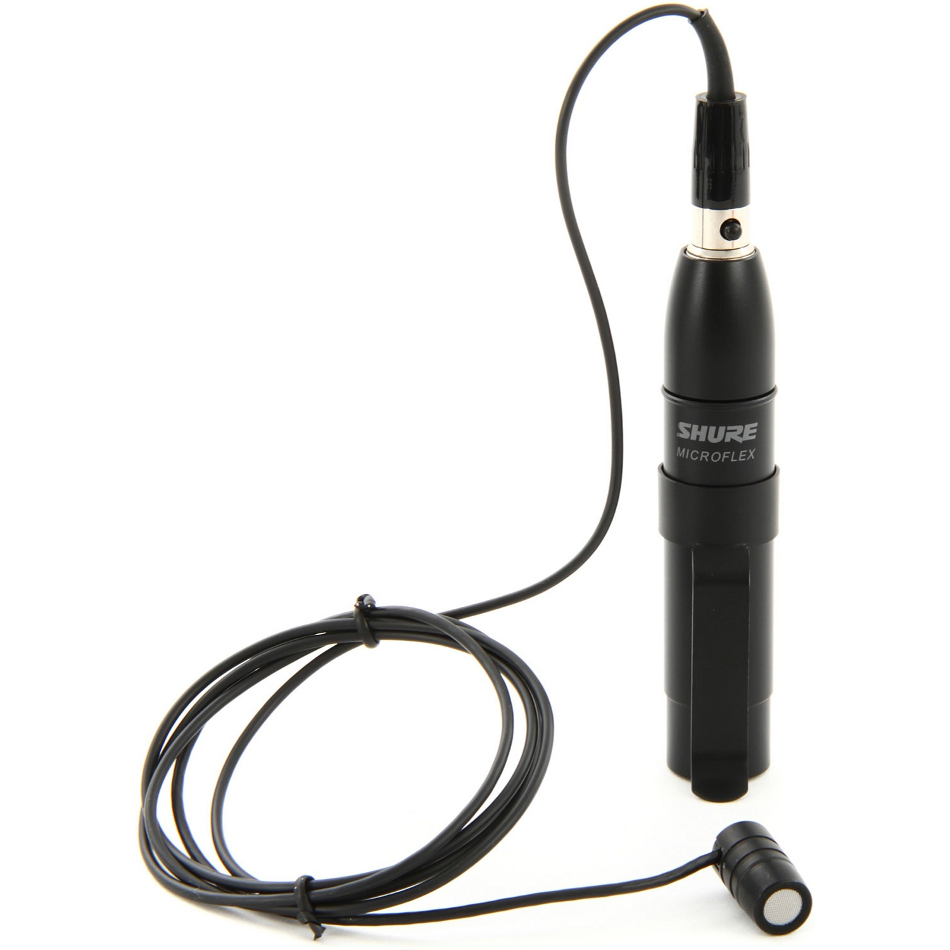

They're no bigger than a paper clip unless you consider the sound they produce. The new Microflex Lavalier microphones bring a new level of sophistication to personal voice reproduction. Like all Microflex family microphones, the new Lavaliers use Shure's interchangeable condenser cartridges, available in cardioid, supercardioid or omnidirectional polar patterns. That means you can be sure there's a Microflex Lavalier that's right for your job.
Includes
- MX184 Supercardioid Lavalier Mic with in-line Preamp and Cable
- Pivoting Single-Microphone Tie Clip
- Dual Microphone Tie Clip Black
- Snap-fit Foam Windscreen
- Belt-Clip In-Line XLR Preamp
Features
- Wide dynamic range and frequency response for accuratesound reproduction across the audio spectrum
- In-line XLR preamplifier and a 1.2 m (4 ft.) cable with TA4F connector
- Interchangeable cartridges that provide an optimalchoice for each application
- Rotatable tie-clip that pivots in 90 degree incrementsfor placement flexibility
- Supplied snap-fit foam windscreen that controls breathnoise and stays ons ecurely
- Balanced, transformerless output for increasedimmunity to noise over long cable runs
- Supplied dual tie clip holds two microphones for dual miking applications
Specifications
- Type: Condenser (electret bias)
- Frequency Response: 50-17,000 Hz
- Polar Pattern: Supercardioid
- Output Impedance: EIA rated at 150 Ohm (180 Ohm actual)
- Open Circuit Sensitivity (at 1 kHz, ref. 1V/Pa): -33.5dB (21.1 mV)
- Max SPL (1kHz at 1% THD, 1 k? load): 122.7 dB
- Equivalent Output Noise (A-weighted): 26.5 dB
- Signal to Noise Ratio (referenced at 94 dB SPL): 67.5dB
- Dynamic Range at 1 k ohm load: 96.2 dB
- Power Requirements: 11-52V DC Phanotm, 2.0 mA
- Common Mode Rejection: 45.0 dB minimum
- Polarity: Positive sound pressure on diaphragmproduces positive voltage onpin 2 relative to pin 3 of output XLR connector
- Environmental Conditions:
- Operatine Temperature Range: -18 to 57 degrees C (0 to 135 degrees F)
- Storage Temperature Range: -29 to 74 degrees C (-20 to 164 degrees F)
- Cable: Shielded 1.2 meter (4 ft.) cable terminatedwith a 4-Pin Female MiniConnector (TA4F)
- Dimensions:
- Capsule: approx. 12mm (0.46") diameter, 22mm (0.85") length
- TA4F connector: approx. 20mm (0.79") diameter, 99mm (3.89")length
