Product Overview
Designed as a cost-effective solution specifically for sound contractors, QSC's ISA Series features seven models including four low impedance models (ISA 280, ISA 450, ISA 750, ISA 1350) rated for 2 Ω operation, and three "Ti" versions with isolated 25, 70 and 100 volt outputs for distributed audio systems (ISA 300Ti, ISA 500Ti, ISA 800Ti). Versatile loading options and a comprehensive feature set make the ISA Series a rugged, cost-effective power solution for any permanently installed sound system.

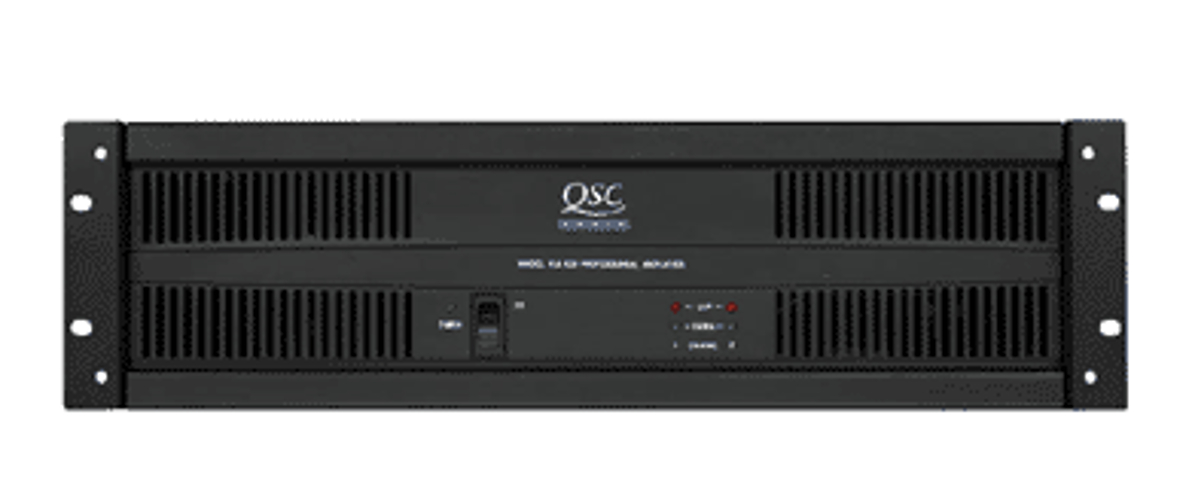

Housed in a rugged 3U chassis, the ISA280 features rear panel gain controls for tamper resistant operation with 2 dB detents for quick and repeatable settings. Inputs include both XLR and detachable Euro-style connectors. Outputs feature covered barrier strip connectors for safety agency compliance, and for added versatility, a DataPort V2 terminated with an HD-15 connector is provided for use with DPV2-compatible signal processing accessories. Plus, selectable high-pass filters are included to protect speakers and prevent speaker transformer saturation with minimal effect on program material.
Features
- Rear panel gain controls for tamper resistant operation with 2 dB detents for quick and repeatable settings
- XLR and detachable Euro style input connectors
- DataPort V2 for use with DPV2-compatible signal processing accessories (XC-3, SF-3, LF-3) and DSP-3/DSP-4 (with external power supply)
- Independent defeatable clip limiters for reduced distortion
- Selectable high-pass filters protect speakers and prevent speaker transformer saturation with minimal effect on program material (30 Hz or 70 Hzon non-"Ti" models, 50 Hz or 75 Hz on "Ti" models)
- Front panel indicators include power, signal, and clip
- Stereo, Bridge, or Parallel operating modes
- Comprehensive protection circuitry including DC, infrasonic, thermal overload and short circuit protection
- 3-year warranty plus optional 3-year extended service contract
Specifications
- 8 ohms 20Hz-20kHz 0.1% THD: 185W
- 4 ohms 20Hz-20kHz 0.1% THD: 280W
- 2 ohms 1kHz 1% THD: 430W
- Bridged Mono 8 ohms 1kHz 0.1% THD: 600W
- Bridged Mono 4 ohms 1kHz 1% THD: 830W
- Signal to Noise (20Hz-20kHz): 100 dB
- Distortion (SMPTE-IM): < 0.01%
- Input Sensitivity @ 8 ohms: 1.15v (+3.4 dBu)
- Voltage Gain @ 8 ohms: 33.4x (30.5 dB)
- Output Circuitry: Class AB
- Distortion (Typical):
- 20 Hz-20 kHz: 10 dB belowrated power: Less than 0.03% THD, 4 ohms and 8 ohms
- 1.0 kHz and below: full rated power: Less than 0.03% THD, 4 ohms and 8 ohms
- Frequency Response, 10dB below rated output power: 20Hz-20kHz, +0/-1dB, -3dB points: 5 Hz + 50 Hz
- Damping Factor (Direct Outputs): > 250 @ 8 ohms
- Output Regulation: < 1.5 dB
- Input Impedance: 10 k ohms unbalanced, 20 k ohms balanced
- Input Clipping: 10 Vrms (+22 dBu)
- Cooling: Continuously variable speed fan, back-to-front air flow
- Connectors, each channel:
- Input: Active balanced;3-pin Euro-style detachable terminal block and XLR (pin2+)
- Output: Covered barrierstrips
- DataPort V2: HD-15 connector
- Controls:
- Front: AC switch
- Rear: Ch. 1 and Ch. 2 gain knobs, 10-position DIP switch
- Indicators: PWR-ON Green LED, SIGNAL Green LED (1 per channel), CLIP RedLED (1 per channel)
- Amplifier Protection: Full short circuit, open circuit, thermal, ultrasonic, and RF protection; Stable into reactive or mismatched loads
- Power Requirements: 120, 230, VAC, 50-60 Hz
- Load Protection: On/off muting; Triac crowbar: ISA 750
- Rack-mount size: 3 RU
- Dimensions: 19" x 5.25" x 15.9" (48.3 x 13.3 x 40 cm)
- Weight: 36 lbs. (16.3 kg)
