Whirlwind WMKPVC
Accusonic+2 Raw 22 AWG 2-Conductor Audio Cable with Black PVC Jacket, Sold by the Foot

OUR PART #  WMKPVC-BY-FOOT

Our Price: $0.85
List Price: $0.96
Save up to 50% when you order by quantity!
Buy 50 @ $0.68 ea.
Buy 200 @ $0.62 ea.
Buy 400 @ $0.48 ea.
(Low Price Guarantee)
In Stock

The Whirlwind WMKPVC is a heavy duty, flexible 2-conductor audio cable with polyethylene insulation and a black PVC jacket.

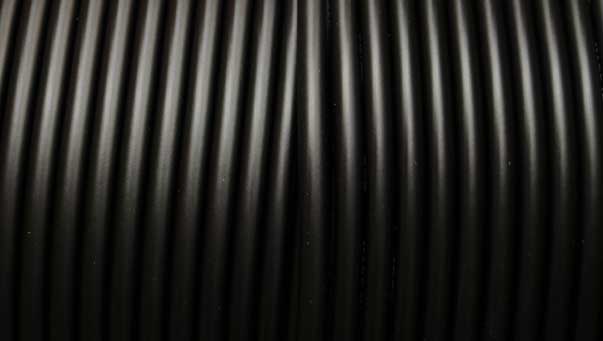

NOTE: Image shown above is of WMKPVC on a spool.

Whirlwind WMKPVC Specifications:

  • No. of Conductors:  2
  • Conductor Gauge:  22 AWG
  • Stranding:  26x36
  • Shield Type & % Coverage:  B.C. Braid, 78%
  • Overall Diameter:  0.245"
  • Nominal Capacitance, Conductor to Conductor:  19 pf / ft
  • Nominal Capacitance, One conductor to shield with other conductor tied to shield:  35 pf / ft
  • Jacket Thickness:  0.045"
  • Insulation Thickness:  0.018"
  • Weight per 100 ft:  3.2 lbs

Whirlwind WMKPVC
Accusonic+2 Raw 22 AWG 2-Conductor Audio Cable with Black PVC Jacket, Sold by the Foot

OUR PART #  WMKPVC-BY-FOOT

Product Information:

The Whirlwind WMKPVC is a heavy duty, flexible 2-conductor audio cable with polyethylene insulation and a black PVC jacket.

NOTE: Image shown above is of WMKPVC on a spool.

Whirlwind WMKPVC Specifications:

  • No. of Conductors:  2
  • Conductor Gauge:  22 AWG
  • Stranding:  26x36
  • Shield Type & % Coverage:  B.C. Braid, 78%
  • Overall Diameter:  0.245"
  • Nominal Capacitance, Conductor to Conductor:  19 pf / ft
  • Nominal Capacitance, One conductor to shield with other conductor tied to shield:  35 pf / ft
  • Jacket Thickness:  0.045"
  • Insulation Thickness:  0.018"
  • Weight per 100 ft:  3.2 lbs
