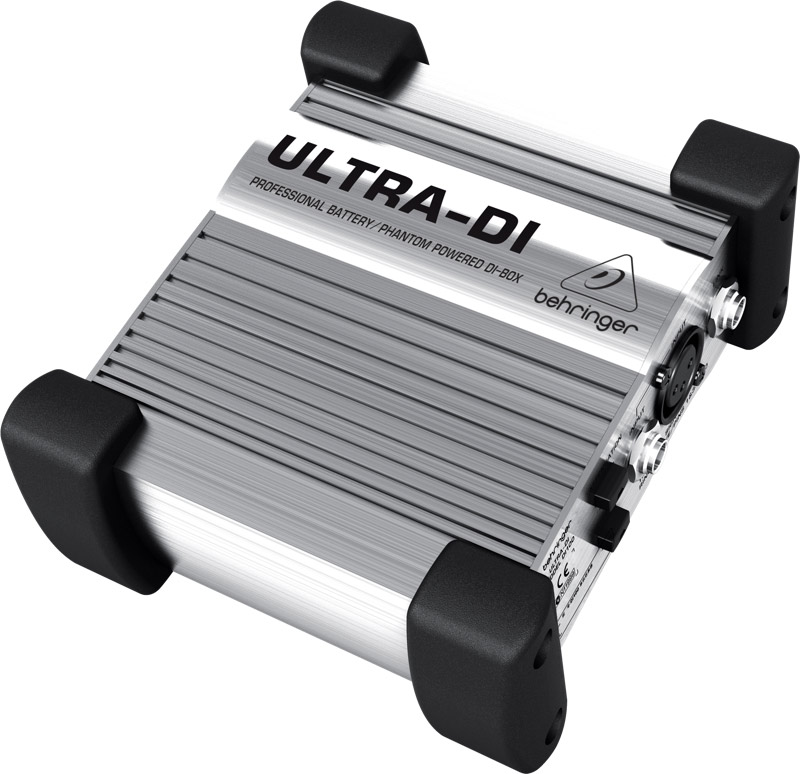

Behringer DI100 Active DI-Box

OUR PART #: DI100-ULTRA-DI

Copied to clipboard

The Behringer DI100 features input buffering and the renowned OT-1 output transformer. Direct connection of amplifier outputs with ratings of up to 3,000W. ...Read more

Behringer DI100 Active DI-Box Image 1
Behringer DI100 Active DI-Box Image 2
Behringer DI100 Active DI-Box Image 3
Behringer DI100 Active DI-Box
No longer available at Full Compass
We've left this page up for reference only.

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Product Overview

The Behringer DI100 features input buffering and the renowned OT-1 output transformer. Direct connection of amplifier outputs with ratings of up to 3,000W. Internal battery automatically shuts off when phantom power is connected. Switchable input attenuation allows input levels of up to +50 dB w/ ground lift. With the DI100, you can rest assured that your sound source will reach your console balanced and noise-free. Go ahead and plug that guitar amp's speaker output into the ULTRA-DI—it’ll deal with ratings of up to 3,000W and give you a perfect signal at the other end. The input-buffering amplifier ensures clean, pure and powerful sound, even with extremely long cable runs.

Features

  • Switchable input attenuation allows input levels up to 50dB
  • Direct connection of amp outputs with ratings up to 3000W
  • Ground lift switch eliminates typical ground loop problems
  • Rugged, road-proof aluminum case
  • Internal battery automatically shuts off when phantom power is connected

Specifications

  • Frequency Response: 10 Hz to 93 kHz
  • Noise Level: -110 dBu
  • THD+N @ 1 kHz / 0 dBu: < 0,005 %
  • Input Impedance: >250 kΩ
  • Load Impedance: >600 Ω
  • Inputs: 1/4" jack unbal. In/ Link Out, XLR unbalanced In
  • Output: XLR balanced out
  • Maximum Input level: +10/+30/+50 dBu
  • Power supply:
    • Phantom power: 18 V DC to 48 V DC
    • Battery: 9 V blockcell 6LR91
  • Dimensions: 5.91" x 5.12" x 2.36" (150 x 130 x 60mm)
  • Weight: approx. 1.43 lbs (650g)
