Radio Design Labs RU-VDA4
1x4 Video Distribution Amplifier with BNC Jacks

OUR PART #  RUVDA4/BNC

Our Price: $260.37
List Price: $348.30
You save 25%!
Usually ships in 7-14 business days.
Need it sooner? Call us!

Recommended Accessories

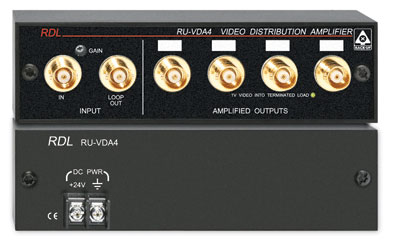

Radio Design Labs' RU-VDA4 is the ideal choice in most applications where video signals need to be distributed. Video inputs and outputs are made on the front panel via BNC jacks. Power connections are made using full-size barrier block terminals on the rear panel.

The RU-VDA4 has two jacks in the input stage. One jack is for the input signal; the other is a loop through output of the source signal.The input stage is bridging. If 75 O termination of the input signal is required, the termination is plugged onto the LOOP OUT jack.

Gain is user adjustable from the front panel. The GAIN potentiometer allows adjustment from -1 dB to +7 dB.

NOTE: Radio Design Labs' PS-24AS power supply is NOT included but is required in order to power this product.  Please see the "Accessories" tab or click here for more information on the PS-24AS power supply.

Features:

  • Video Distribution with 4 Outputs
  • Adjustable Gain Amplification
  • Input LOOP OUT Jack
  • Video 1 Volt Signal Indicator
  • 10 MHz Bandwidth, NTSC or PAL
  • 1/3-Rack, High-Density Rack Mounting

Specifications

  • Input: 1 kO bridging 75 O line
  • Gain: -1 dB to +7 dB (0.9 to 2.25 V p-p, adjustable)
  • Outputs: 1 LOOP OUT from input signal; 4 amplified outputs
  • Output Level: 1 V p-p into 75 O
  • Frequency Response: 10 Hz to 10 MHz (+/- 0.2 dB)
  • Noise: < -70 dB below (1 V p-p)
  • Output Isolation: > 40 dB
  • Differential Gain: 0.1%
  • Differential Phase: 0.1 degree (measured at 10% and 90APL)
  • Connector Type: BNC, PHONO, or Type F
  • Power Requirement: GROUND-REFERENCED, 24 to 33 Vdc @ 60 mA
