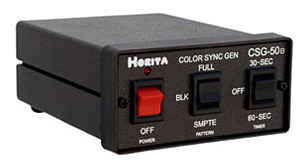

Horita Csg 50B
Color Bar, Sync, & Audio Tone Generator w/ Multiple Black/SC Outputs

OUR PART #:  CSG50B

Features: Generates color bars, blackburst, and composite sync signals, as well as a 15 Hz reference frame timing signal.
Learn More
Our Price: $486.53
List Price: $499.00
Be the first to review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Horita Csg 50B
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

Features:

  • Generates color bars, blackburst, and composite sync signals, as well as a 15 Hz reference frame timing signal.
  • Front panel selection of full-field or SMPTE (with "pluge") color bar patterns or blackburst video output.
  • Precision digitally synthesized video signals are fully RS-170A SC/H phased and always correct. No SC/H adjustment ever required.
  • Built-in timer can automatically switch video output from color bars to black and audio tone to silence after 30 or 60 seconds. Easy and convenient for producing tape leaders and striping tapes with color bars and tone followed by black and silence.
  • Video signals generated by the CSG-50 are in accordance with the industry standard EIA RS-170A video timing specification.
  • SMPTE color bars meet SMPTE specifications EG-1-1990.
  • Full-field color bars meet EIA RS-189A specifications for video levels and color bars.
  • Includes crystal-controlled, 1KHz, 0dB audio tone output.
  • Outputs: video, composite sync, 15 Hz ref frame, 1KHz, 0dB audio tone (unbalanced).
  • Also available in 24-frame format.
  • 5 additional outputs which may be configured for all blackburst or in various combinations with sync and subcarrier
  • Up to 7 black/subcarrier outputs provided on Rackmount and Short Rackmodels.
