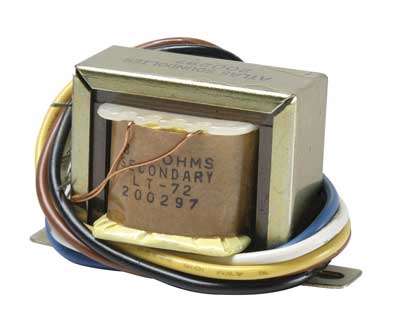

Atlas IED LT72 4 Watt Transformer, 25/70.7V

Quality dual-voltage transformer equipped with terminals for 70.7- and 25-volt line application is recommended for inventory reduction advantages. Primary taps are .5, 1, 2 and 4 watts. Secondary impedance is 8 ohms. The primary and secondary employ lead wire terminations. Frequency response is +1.5dB from 100 Hz to 10 kHz. Insertion loss does not exceed 1.5dB.

Specifications

• Pri. Volts: 70.7/25
• Frequency Response: +/-1.5dB-100Hz-10kHz
• Primary Taps (Watts): .5, 1, 2 & 4
• Secondary Impedance (Ohms): 8
• Maximum Insertion Loss: 1.5dB
• Primary Terminations: 6" Color Coded
• Secondary Terminations: Com. Lead + Terminals
• Core-Size: 1/2" x 5/8"
• Power Rating (Watts): 4
