Bogen Communications Pcmcpu
Central Processing Unit for PCM2000 Zone Paging System

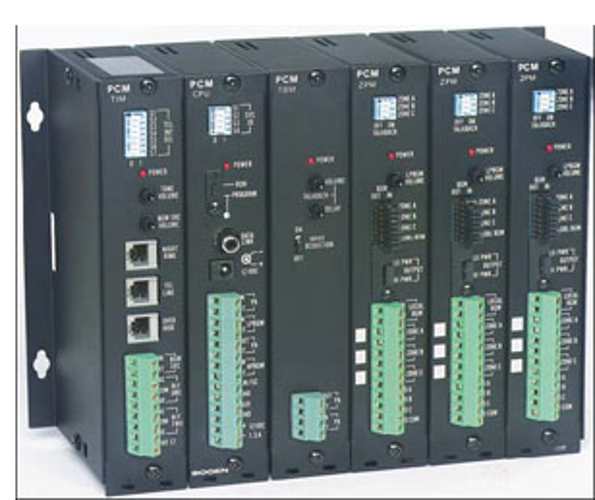

The Bogen PCM2000 is a modular telephone zone paging and control system.
Learn More
Our Price: $123.71
List Price: $145.07
You save 15%!
Write the first review.
Bogen Communications Pcmcpu
Usually ships in 7-14 business days.
Need it sooner? Call us!

Related Products

The Bogen PCM2000 is a modular telephone zone paging and control system. By integrating unique, multi-function modules, the PCM2000 offers both incredible flexibility and capability for future expansion.  The Bogen PCM2000 Zone Paging System is designed for direct connection to loop start and ground start trunks, to PBX or KEY paging ports which supply DTMF capability, and to analog T/R lines.The unit allows total system amplifier power of up to 250W.

The PCM2000 allows for the design of a system that is specifically tailored to the requirements of the facility owner. The basic system supports up to three paging zones and consists of only three modules:

PCMCPU – Central processor

PCMTIM – Telephone interface

PCMZPM – Zone module (3 zones)

The PCMCPU module includes a set of DIP switches to set the system ID, a Program/Run switch that allows system programming, a Power jack for 12V DC power, and audio connections for central amplifier, low-power BGM, high-power BGM, emergency/ shift change trigger, and auxiliary trigger.

The PCMTIM telephone interface module incorporates a universal interface so that connection to any telephone system is rapid and trouble-free.The module connects to the telephone system via a standard RJ11 plug and is programmed simply by using common DIP switches.All other connections are made to built-in terminal blocks using only a small screwdriver.  Setup is also easy. Zone group programming, selection of all signaling functions, and all other parameters are set by simply dialing in with a touch-tone telephone.

The telephone interface module is equipped with three RJ11 jacks for Night Ring, Tel Line, and Override. The NIGHT RINGER feature can be activated from 90V ring signal or contact closure.The TEL LINE jack can be used to program the system locally and provides 48V talk battery.The OVERRIDE feature permits all-zone override paging from a dedicated telephone, trunk, or microphone (with suitable pre-amp).

The PCMZPM – zone paging module can operate high-power or low-power paging systems (only one type per PCMZPM module). For high-power paging, a single amplifier can be used for paging and supplying background music (when not paging).  Background music can also be continuously supplied to all zones not being paged with the addition of a second amplifier.  For low-power operation, background music is always supplied to zones not being paged. Each module can also be disconnected from the background music bus and connected to a local background music source.

Two additional zone modules can be added to the basic system to increase capacity to 9 zones.When more than 9 zones are required, a central processor module with power supply and up to 3 zone modules can be assembled as a satellite system.Ten additional 9-zone satellite systems can be installed to bring total capacity to 99 zones.

A talkback module (PCMTBM) can also be added to the system to provide hands-free talkback capability. Only one talkback module is required regardless of the number of zones or satellite systems on the PCM2000 system.

Relay driver outputs are provided for each zone.Two C-form contact sets are also provided to control the activation of accessory equipment.

Bogen Communications PCM2000 Features:

  • Simultaneous high- &low-power paging
  • Zone and zone group paging (32paging zone groups, each with up to 99 zones)
  • Built-in talkback amplification(requires PCMTBM module)
  • Background music assigned perzone
  • Local BGM sourcingcapability
  • Night ringer zonegroup
  • Emergency zone group withchoice of built-in tones or outside tone source
  • Emergency all-facility pageoverride
  • Eight daily time-triggeredsignaling events (requires PCMTBM module)
  • Pattern & echo codecalling
  • Daily master clocksynchronization
  • Relay driver perzone
  • Auxiliarycontacts
