AKG PZM10 LL PZM Mic with Line Level Output

OUR PART #: PZM10LL MFR #: 3327H00010

Copied to clipboard

Since it doesn't look like a microphone, Crown's PZM-10LL is great for security, surveillance, and conference-table use, thanks to its inconspicuous nature. ...Read more

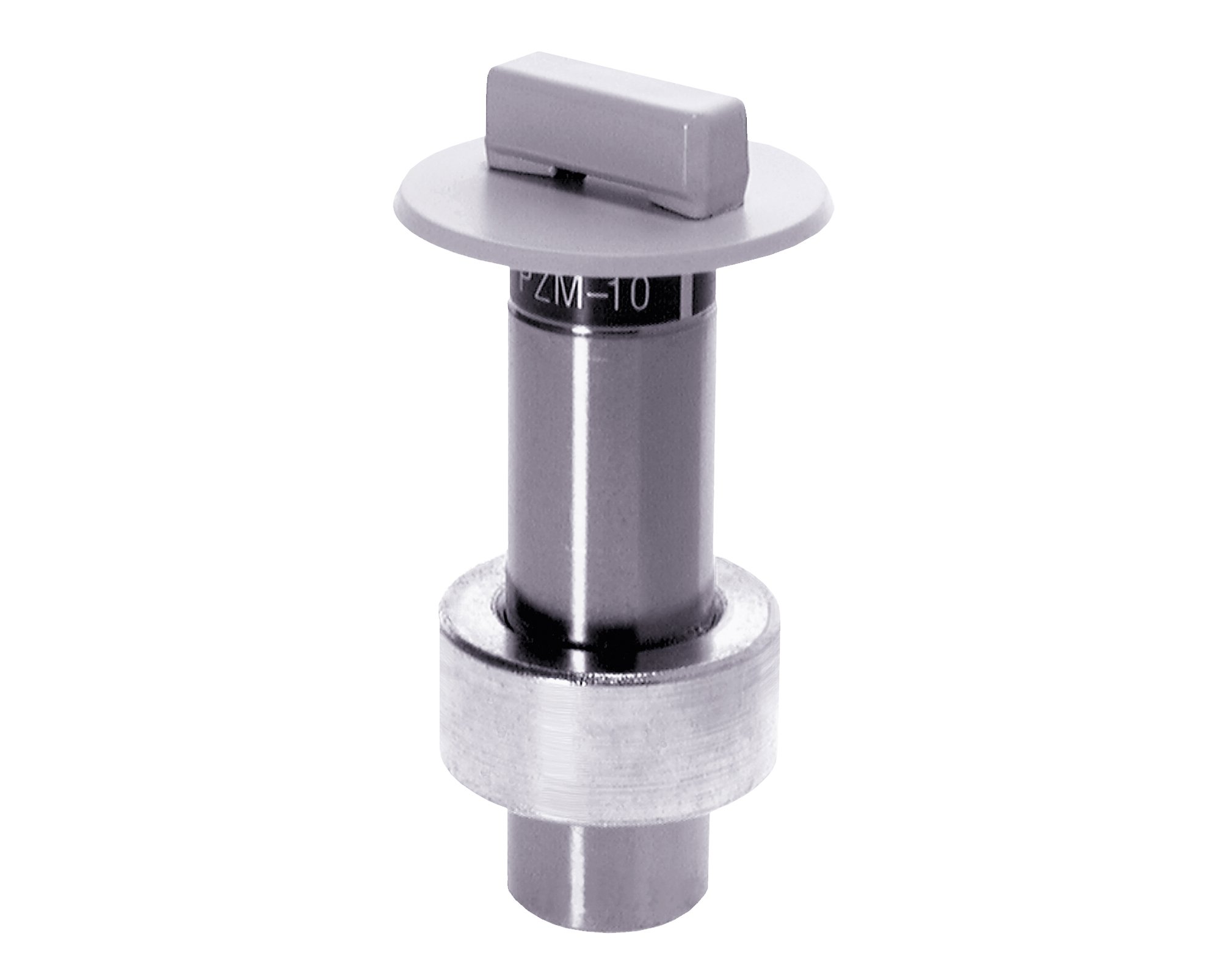

AKG PZM10 LL PZM Mic With Line Level Output Image 1
AKG PZM10 LL PZM Mic With Line Level Output
Our Price: $255.00
List Price: $317.12
You save 20%!

SPECIAL FINANCING AVAILABLE

Synchrony Music & Sound Card
$8/mo* with 36 month financing. ‡
Limited Time. Learn How
Item usually available to ship in 9-12 Business Days. Please call for up-to-date information on product availability.

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Product Overview

Since it doesn't look like a microphone, Crown's PZM-10LL is great for security, surveillance, and conference-table use, thanks to its inconspicuous nature. Each mic's tubular housing mounts within a 25/32"-diameter hole located in a ceiling panel, wall or table. It features a line-level output from its unterminated cable, and requires 12 to 24 VDC.

Like other Pressure Zone Microphones, this mic uses a miniature mic capsule mounted very near a sound-reflecting plate or boundary—in the "Pressure Zone". Withn this zone, direct sound from the sound source combines all frequencies in-phase with reflected sound off the boundary. The benefits are many, including: 6 dB more sensitivity, 6 dB less noise, a wide smooth frequency response free of phase interference, excellent clarity and "reach", and consistent pickup anywhere around the mic.

Frequencies below the voice range are rolled off to reduce pickup of air conditioning rumble. The high-frequency response is boosted slightly to help articulation. Because of its tailored response and PZM construction, the PZM-10LL will pick up conversations or other desired sounds with extra clarity and definition.

The output is balanced, low-impedance, allowing long cable runs without hum pickup or high-frequency loss. Additionally, the mic's humbucking transformer and steel case also resist hum pickup, even near fluorescent lights.

Specifications

  • Transducer Type: Electret condenser
  • Frequency Response (typical): 100 Hz to 20,000 Hz
  • Polar Pattern: Hemispherical
  • Impedance: 75 Ω, balanced
  • Recommended Load Impedance: 1 kΩ
  • Open-circuit sensitivity: 1.4 mV/Pa (+3 dB re 1V/Pa)
  • Power Sensitivity: +8 dBm/Pa
  • Equivalent noise level (self noise): 26 dB SPL typical, A-weighted
  • S/N Ratio: 68 dB at 94 dB SPL
  • Max SPL for 3% THD: 120 dB
  • Operating Voltage: 12 to 24 VDC, positive voltage on red lead with respect to shield
  • Output connector: None (unterminated)
  • Current Drain: 2.8 mA at 12 VDC, 4.22 mA at 24 VDC
  • Cable: 12" permanently-attached 3-conductor shielded cable. Red: B+, White: Audio+, Black: Audio-, Shield: ground
  • Materials: Steel plate and housing
  • Finish: Off-white; may be painted any color; take care to first seal the opening between the capsule and boundary plate
  • Dimensions (Length x Max Ø): 2.829" x 1.53"
  • Weight: 3.3 oz.
