Shure RKC800 1U XLR Connector Panel for SCM800 and SCM810 Mixers

OUR PART #: RKC800 MFR #: RKC800

Copied to clipboard

The Shure RKC800 XLR Connector Kit is engineered to connect XLR and phono pin connectors to Shure SCM810 and SCM800 Microphone Mixers (sold separately). ...Read more

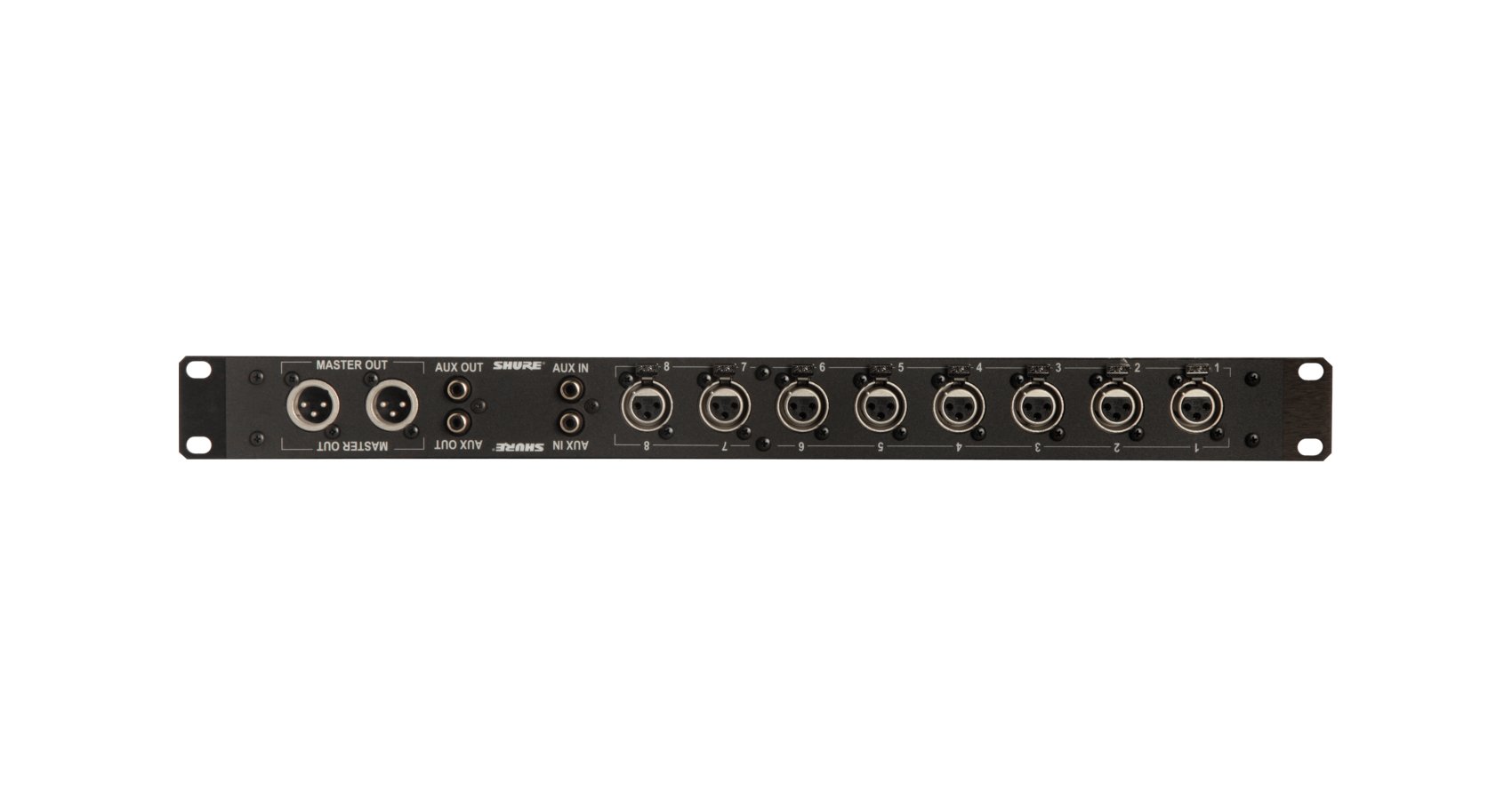

Shure RKC800 1U XLR Connector Panel For SCM800 And SCM810 Mixers Image 1
Shure RKC800 1U XLR Connector Panel For SCM800 And SCM810 Mixers
Our Price: $291.57
List Price: $296.00

SPECIAL FINANCING AVAILABLE

Synchrony Music & Sound Card
$9/mo* with 36 month financing. ‡
Limited Time. Learn How
Item usually available to ship in 5-9 Business Days. Please call for up-to-date information on product availability.

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Product Overview

The Shure RKC800 XLR Connector Kit is engineered to connect XLR and phono pin connectors to Shure SCM810 and SCM800 Microphone Mixers (sold separately). The unit occupies a single rack-space in a standard 19" (483mm) width audio equipment rack. Its front panel contains 8 latching XLR input connectors, 2 XLR output connectors, and gold-plated Aux In and Aux Out (2 each) phono jacks. Input connectors from are hardwired, and Aux as well as Line Out connectors contain resistive circuitry. Connecting cables are 24" (61cm).

Specifications

  • Aux Output Impedance (actual): 2 kΩ
  • Line Output Impedance (actual): 200 Ω
  • Aux Input Level: -10 dBV nominal
  • Aux Output Level: -10 dBV nominal
  • Dimensions (H x W x D): 1-¾" x 19 x 2-⅝" (44.5 x 483 x 66.7mm)
  • Net Weight: 3 lbs., 3 oz. (1.45 kg)
