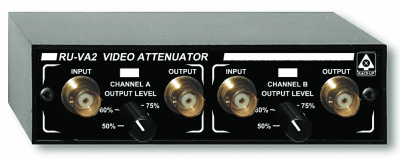

Radio Design Labs RU-VA2
Dual-Channel Adjustable Video Attenuator - BNC, 75 Ohm In/Out

OUR PART #  RUVA2

Our Price: $155.72
List Price: $208.31
You save 25%!
Usually ships in 7-14 business days.
Need it sooner? Call us!

Recommended Accessories

Radio Design Labs' RU-VA2 is the optimum choice where connectorized, rack-mounted video attenuation is needed. This unit features two separate, passive isolated channels. A single input jack is provided for each attenuator. The output jack is intended to be connected to a 75 O terminated load. A front-panel knob is provided to adjust hot video levels down to the normal 1 volt p-p signal level. A single attenuator is capable of adjusting down the video level to half the incoming signal level.

In situations where excessive video levels may cause input overload artifacts, the RU-VA2 is easily connected to the circuit and adjusted for proper video levels. With the high density 1/3 rack width of the RACK-UP® series, an RU-VA2 can be conveniently added to a rack so it is available when needed.

Mounting: Rack-mount using optional RU-RA3 triple rack mount or RC-1U rack chassis. Bottom mount using available adhesive strips; bottom or top mount to a flat surface using optional MB-2 mounting bracket set; front mount to a panel or backboard using optional MB-1 mounting set. Mount to cabinet using RU-BR1.

Features:

  • Video Attenuation
  • Two Channels
  • Front-Panel Level Adjustment
  • Stand Alone or Rack-Mountable
  • 75 O Attenuators
  • 1/3 Rack, High-Density Rack Mounting
  • Passive Power (power adapter not required)
Mounting Bracket for RACK-UP SeriesRadio Design Labs RU-BR1 Mounting Bracket for RACK-UP Series

The RU-BR1 mounts an RDL 'RACK-UP' module above or below a horizontal surface.

In Stock

Our Price:$33.16List Price: $39.14You save 15%!

24 VDC 500mA Switching Power SupplyRadio Design Labs PS-24AS 24 VDC 500mA Switching Power Supply

Radio Design Labs' PS-24AS is a 24 Vdc switching power supply with a North American AC plug.  500 mA, dc plug.Specifications: Input: 100 to 240 VACOutput: 24 Vdc, 500 mA (UL, CSA)Dimensions: 1.65" x 2.75" x 1.45" (4.2 x 7 x 3.7 ...

In Stock

Our Price:$22.92List Price: $30.67You save 25%!

Mounting Kit for STICK-ON, TX, or Rack-Up moduleRadio Design Labs MB1-RDL Mounting Kit for STICK-ON, TX, or Rack-Up module

Two mounting brackets mounts a STICK-ON, TX, or Rack-Up module to a flat surface.

In Stock

Our Price:$3.39List Price: $4.00You save 15%!

Single RACK-UP Mounting Bay Utility ChassisRadio Design Labs UC-1 Single RACK-UP Mounting Bay Utility Chassis

Radio Design Labs' UC-1 is an ULTRASTYLE design tabletop chassis for mounting RDL modules and accessories. The front panel features a single RACK-UP mounting bay. The rear panel has an identical mounting bay and is supplied with matching ...

Usually ships in 7-14 business days.
Need it sooner? Call us!

Our Price:$84.01List Price: $112.37You save 25%!

Mounting Kit for RU and TX SeriesRadio Design Labs MB2-RDL Mounting Kit for RU and TX Series

MB-2 pair mounts a RACK-UP or TX module above or below a surface.

Usually ships in 7-14 business days.
Need it sooner? Call us!

Our Price:$2.30List Price: $2.72You save 16%!

Click to download

Radio Design Labs RU-VA2
Dual-Channel Adjustable Video Attenuator - BNC, 75 Ohm In/Out

OUR PART #  RUVA2

Product Information:

Radio Design Labs' RU-VA2 is the optimum choice where connectorized, rack-mounted video attenuation is needed. This unit features two separate, passive isolated channels. A single input jack is provided for each attenuator. The output jack is intended to be connected to a 75 O terminated load. A front-panel knob is provided to adjust hot video levels down to the normal 1 volt p-p signal level. A single attenuator is capable of adjusting down the video level to half the incoming signal level.

In situations where excessive video levels may cause input overload artifacts, the RU-VA2 is easily connected to the circuit and adjusted for proper video levels. With the high density 1/3 rack width of the RACK-UP® series, an RU-VA2 can be conveniently added to a rack so it is available when needed.

Mounting: Rack-mount using optional RU-RA3 triple rack mount or RC-1U rack chassis. Bottom mount using available adhesive strips; bottom or top mount to a flat surface using optional MB-2 mounting bracket set; front mount to a panel or backboard using optional MB-1 mounting set. Mount to cabinet using RU-BR1.

Features:

  • Video Attenuation
  • Two Channels
  • Front-Panel Level Adjustment
  • Stand Alone or Rack-Mountable
  • 75 O Attenuators
  • 1/3 Rack, High-Density Rack Mounting
  • Passive Power (power adapter not required)
