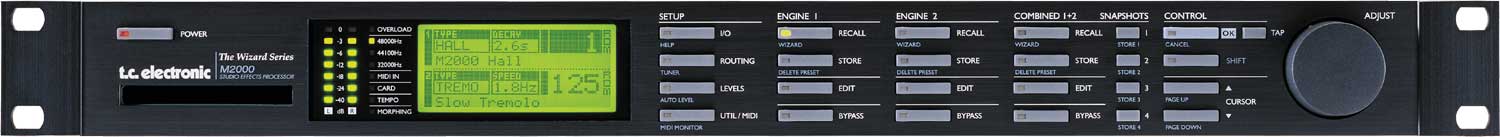

TC Electronic M2000
Studio Effects Processor

OUR PART #  M2000

Our Price: $949.99
List Price: $1,424.99
You save 33%! (Low Price Guarantee)
Usually ships in 7-14 business days.
Need it sooner? Call us!

The M2000 provides a broad palette of high quality effects enabling magical creativity. The true dual engine configuration allows you to run two full-blown effects simultaneously, i.e. on two individual effects sends. The effects have been developed for optimal sonic quality with no compromises made. This has only been possible because our engineers succeeded in combining the latest technology with TC's powerful DARC™ chip.

Ultimate User-Interface
The user-friendly TC feature, the Recall Wizard, instantly finds the preset that suits your need in any situation. You simply enter your preferences, such as gentle reverb for vocal, or extra pitch for guitar and the Wizard serves you a short list of presets ready to compare and use.

Uncompromising Effects
The M2000 gives you access to a stunning array of Reverb, Pitch-shifting, Delays, Chorus, Dynamics etc. Among the included reverbs you'll find the unique Co-efficient Optimized Room Emulator or C.O.R.E. Reverb™ based upon TC's famous reverberation Technology.

Another unique feature in the M2000 is the Dynamic Morphing. This function enables you to apply e.g. Chorus to a vocal at low volume levels, while the same effect is being morphed into flanging at high levels giving the signal a totally new dynamic dimension.

The Sensation
The M2000 is fully prepared for the digital age with Digital I/O connectors, S/PDIF and the professional format AES/EBU. However, specifications never tell the whole story. What really matters is how your final mix sounds. This is where TC's long experience and know-how in high-end studio signal processing becomes important.

Features:

  • 250 factory presets, including Delay, Reverb, Ambience, Pitch, Dynamics, EQ + more.
  • True stereo Twin Engine processing with six different routings available.
  • Dynamic Morphing™ and Patch Glide with adjustable glide times.
  • 24bit Analog Conversion (105dB Dynamic Range A to D): 10Hz-20Khz bandwidth
  • AES/EBU (24bit) and SPDIF (24bit) digital I/O. + 16bit dithering tool for DAT output.
  • Wizard Help menus assist user in preset choices on an easy to read scrolling bit-mapped display.
  • Tap tempo and MIDI tempo Delay presets. Tap tempo button and footswitch jack.
  • Both 128 user and 128 Combi-user presets + 4 snapshot memories.
  • Universal auto-switching power supply (100-240V.)

Specifications:

Digital Inputs and Outputs

  • Connectors
    XLR (AES/EBU) RCA Phono (S/PDIF)
  • Formats
    AES/EBU (24 bit), S/PDIF (24 bit), EIAJ CP-340, IEC 958
  • Output Dither
    HPF TPDF dither 8-24 bit
  • Sample Rates
    44.1 kHz, 48 kHz
  • Processing Delay
    0.2 ms @ 48 kHz
  • Frequency Response DIO
    20 Hz to 23,9 kHz +0,01/-0,1 dB @ 48 kHz

Analog Inputs

  • Connectors
    XLR balanced (pin 2 hot)
  • Impedance
    20 Kohm
  • Max. Input Level
    +22 dBu (balanced)
  • Min. input Level
    20 kohm
  • Sensitivity
    @ 12 dB headroom: -22dBu - 10 dBu
  • A to D Conversion
    24 bit (4 bit, 64 times oversampling)
  • A to D Delay
    @ 12 dB headroom: -22 dBu to +10 dBu
  • Dynamic Range
    >103 dB (unweighted), >106 dB (A)
  • THD
    -95 dB (0,0018 %) @ 1kHz, -6 dBFS (FS @ +16 dBu)
  • Frequency Response
    10 Hz - 20 KHz: +0, - 0.2 dB
  • Crosstalk
    <-80 dB, 10 Hz to 20 kHz typical -100 dB @ 1 kHz

Analog Outputs

  • Connectors
    XLR balanced (pin 2 hot)
  • Impedance
    100 Ohm (active transformer)
  • Max Output Level
    +22 dBu
  • Full scale Output Range
    -10 dBu to +22 dBu
  • D to A Conversion
    24 bit (4 bit 64 times oversampling)
  • D to a Delay
    0.57 ms @ 48 kHz
  • Dynamic Range
    >100 dB (unweighted), >104 dB(A)
  • THD
    -86 dB (0.005%) @ 1 kHz, -6 dBFS, FS@ +16 dBu
  • Frequency Response
    10 Hz - 20 KHz: +0, - 0.5 dB
  • Crosstalk
    -60 dB max, 10 Hz - 20 KHz typical -90 dB @ 1 kHz

EMC

  • Complies with
    EN 55103-1 and EN 55103-2 FCC part 15, Class BCISPR 22, Class B
  • Safety
  • Certified to
    IEC 65, EN 60065, UL 1419 and CSA E65

Environment

  • Operating Temperature
    0° C to 50° C (32° F to 122° F)
  • Storage Temperature
    -30° C to 70° C (-22° F to 167° F)
  • Humidity
    Max. 90% non-condensing

PCMCIA Interface

  • Connectors
    PC Card, 68 pin type 1 cards
  • Standards
    PCMCIA 2.0, JEIDA 4.0
  • Card Format
    Supports up to 2 MB SRAM

Control Interface

  • Pedal
    1/4" phone jack, 0 ohm to 50 kohm
  • MIDI
    In/Out/Thru : 5 Pin DIN:

General

  • Finish
    Black anodized aluminum front
  • LCD
    56 x 128 dot graphic LCD-display
  • Dimensions
    483 x 44 x 208 mm (19" x 1.75" x 8.2")
  • Weight
    2.35 kg (5.2 lb.)
  • Mains Voltage
    100 to 240 VAC, 50 to 60 Hz (auto-select)
  • Power Consumption
    <20 W
  • Backup Battery Life
    >10 years
