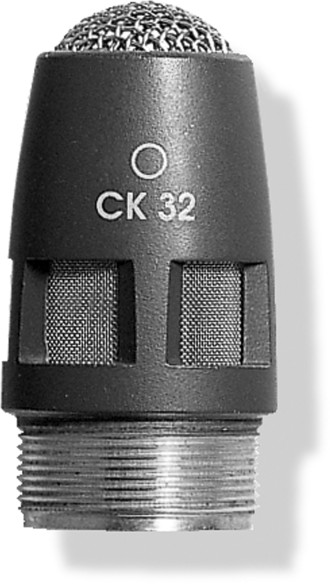

AKG CK32
High-Performance Omnidirectional Condenser Microphone Capsule

OUR PART #:  CK32

The CK32 is a high-performance omnidirectional condenser microphone capsule and an excellent choice for situations requiring ambience pickup...
Learn More
Our Price: $89.00
List Price: $115.00
You save 23%!
Write the first review.
AKG CK32
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Related Products

The CK32 is a high-performance omnidirectional condenser microphone capsule and an excellent choice for situations requiring ambience pickup, like surveillance and recording applications.

The CK32 capsule is integrated into a rugged metal housing and fits any mounting module of the DAM Series. To prevent contact problems the capsule is equipped with large-area, self-cleaning, gold-plated contacts with deep threads to prevent misalignment and ensure extra-long life. The package includes a special two-part windscreen, which reduces wind and pop noise.

Features

  • Omnidirectional pickup pattern
  • Wide frequency range
  • Screw on capsule
  • Gold plated contacts
  • High performance windscreen

Specifications

  • Transducer Principle: Condenser prepolarized
  • Frequency Range: 20–20,000 Hz
  • Polar Pattern: Omnidirectional
  • Sensitivity at 1,000 Hz: 14 mV/Pa = -37 dBV
  • Equivalent Noise Level: < 20 dB-A
  • Sound Pressure Level for 1% THD: 125 dB
  • S/N Ratio (A-weighted): > 74 dB
  • Electr. Impedance: < 600 ohms
  • Power Requirement: 9 to 52 volts phantom power, requires DPA adapter (incl. in GN, HM or LM3 modules)
  • Finish: Dark gray matte
  • Size: dia.: 0.5 in. (13.5 mm) length: 0.8 in. (20 mm)
  • Fitting Mounting Modules: GN 15, GN 15 E, GN 15 ES, GN 30, GN 30 E, GN 30 ES, GN 50, GN 50 E, GN 50 ES, GN 155 SET, HM 1000, LM 3, LM 3 L
  • Included Accessories: W 30 Two stage foam windscreen
