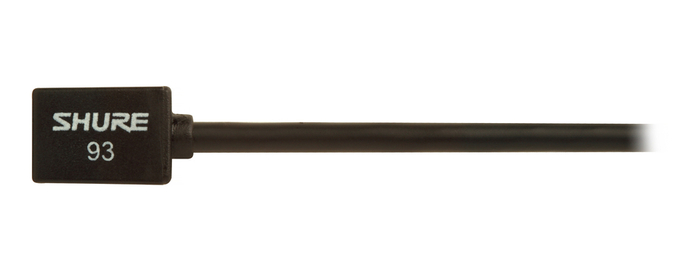

Shure WL93 Miniature Lavalier Microphone with TA4F Connector, Black

OUR PART #: WL93 MFR #: WL93

Copied to clipboard

Model WL93 Microphones are economical omnidirectional, subminiature, lavalier... ...Read more

Shure WL93 Miniature Lavalier Microphone With TA4F Connector, Black Image 1
Shure WL93 Miniature Lavalier Microphone With TA4F Connector, Black
Our Price: $83.00
List Price: $95.00
You save 13%!

SPECIAL FINANCING AVAILABLE

Synchrony Music & Sound Card
$3/mo* with 36 month financing. ‡
Limited Time. Learn How

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Accessories

Product Overview

Model WL93 Microphones are economical omnidirectional, subminiature, lavalier, condenser microphones designed for general speech applications where a visually unobtrusive microphone is desirable. All WL93 models are supplied with a mounting block with attached tie bar, a sew-on mounting bracket, and an acoustic windscreen to minimize wind noise in outdoor applications. All WL93 models include a cable terminated with a 4-PIN mini connector which connects directly to a Shure wireless body-pack transmitter. Black finish.

Features

  • Ideal for theater, TV, broadcasting, film/video, and sound reinforcement
  • Small, inconspicuous mounting hardware
  • Full, clear sound comparable to larger microphones
  • Smooth, extended frequency response specially tailored for chest-worn operation
  • Controlled low-frequency roll off reduces low-frequency clothing and room noise
  • Low distortion, wide dynamic range
  • Uniform omnidirectional polar pattern

Specifications

  • Type: Condenser (electret bias)
  • Frequency Response: 50 to 20,000 Hz
  • Polar Pattern: Omnidirectional, uniform with frequency
  • Output Impedance: 3000 Ω
  • Output Level: open circuit voltage: −38 dBV/Pa(13 mV)
  • Output Clipping Level, at 1 kHz: 0.25 V at 120 dB
  • Total Harmonic Distortion: Less than 1% at 120 dB
  • Maximum SPL: 120 dB
  • Dynamic Range (Maximum SPL, A-weighted): 102 dB
  • Output Noise (equivalent SPL): 18 dB typical, A-Weighted
  • Hum Pickup: N/A
  • Signal-to-Noise Ratio: 76 dB at 94 dB SPL (IEC 651)
  • Polarity: Positive pressure on microphone diaphragm produces positive voltage on pins 3 and 4 with respect to pin 1 (ground)*
  • Recommended Operating Voltage: 2 to 10 V; 5 V nominal (pin 2 to pins 3 and 4)
  • Current Drain: 40 µA typical
  • Operating Temperature: −18 to 57°C (0 to 135°F)
  • Storage Temperature: −29 to 74°C (−20 to 165°F))
  • Cable: Black 1.27 m (4.17 ft), attached, two-conductor, shielded, terminated by miniature Connector Type TA4F
  • Microphone Case: Black ABS thermoplastic case with stainless-steel-mesh grille
  • Microphone Net Weight: 16 g (0.57 oz.)
