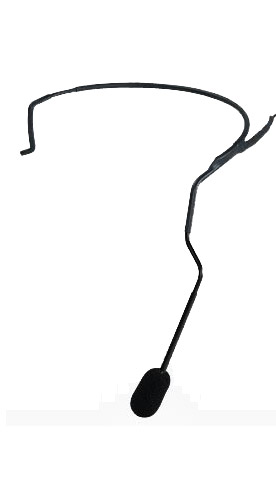

Shure WCM16
Hypercardioid Headworn Wireless Condenser Microphone

OUR PART #:  WCM16

The Shure Model WCM16 headworn electret condenser microphone is intended for wireless use by performers, lecturers...
Learn More
Our Price: $206.79
List Price: $285.00
You save 27%!
Be the first to review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Shure WCM16
Qty:
In Stock

Similar Products

The Shure Model WCM16 headworn electret condenser microphone is intended for wireless use by performers, lecturers, and others who require the highest quality voice pickup with maximum mobility. Its wide frequency response, low RF susceptibility and reliable operation at temperature and humidity extremes make the WCM16 suitable for virtually any vocal application. When used with the Shure Body-Pack Transmitters, the performance of the WCM16 closely resembles the finest conventional vocal microphones.

Miniaturized active circuitry included in the cartridge assembly provides equalization that tailors the low-frequency response to resemble the warm proximity effect of larger vocal microphones. Because of this low-end response, it is not necessary to position the microphone directly in front of the mouth, thus avoiding much popping and breath noise, even without the supplied foam pop screen.

The microphone's hypercardioid unidirectional pickup pattern provides maximum isolation from ambient noise and from adjacent sound sources such as musical instruments, loudspeakers and other performers. This permits higher gain-before-feedback without loss or masking of vocals.

Shure WCM16 Features:

  • Extra lightweight, adjustable headband stays secure and virtually disappears while being worn
  • Response comparable to the finest conventional vocal microphones
  • Hypercardioid polar pattern provides maximum isolation from vocalist's own instrument and those of other performers
  • Uniform polar pattern at all frequencies for maximum gain before feedback
  • High input clipping level eliminates overload distortion
  • Supplied acoustic foam pop screen
  • Reliable at temperature and humidity extremes

Shure WCM16 Specifications:

  • Type: Condenser (electret bias)
  • Frequency Response: 50 to 18,000 Hz
  • Polar Pattern: Hypercardioid, uniform with frequency
  • Output Impedance: 1200 Ohms
  • Output Level (close-talked at 1,000 Hz): Open Circuit Voltage -55.0 dBV (1.8 mV) at 0.6 m
  • Maximum Sound Pressure Level: 150 dB at 1% THD
  • Dynamic Range: 121 dB
  • Output Noise: 29 dB equivalent SPL, A-weighted
  • Signal-to-Noise Ratio: 65 dB at 94 dB SPL
  • Current Drain: 0.35 mA
  • Recommended Operating Voltage: +5 VDC (positive on pin 2, negative on pin 1)
  • Operating Temperatures: -18° to 60° C (0° to 140° F)
  • Storage Temperatures: -29° to 66° C (-20° to 150° F)
  • Humidity: 0 to 95%
  • Cable: 1.5m (5 ft), small-diameter, shielded, with 4-pin mini connector
  • Case Finish (Microphone and Headband): Matte black enamel
  • Net Weight: 36 g (1.27 oz)
