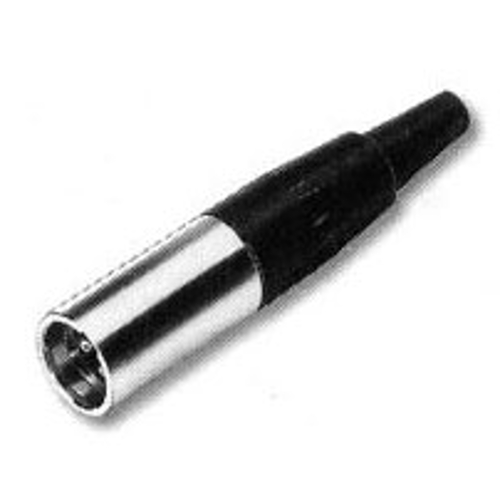

Switchcraft TA4MLX 4-pin Mini XLRM TA Series Cable Mount Connector, Large Flex Relief

OUR PART #: TA4MLX MFR #: TA4MLX

Copied to clipboard

STYLE - Streamlined, miniaturized with nickel-plated metal and contrasting black plastic parts. Designed for light weight and unobtrusiveness. ...Read more

Switchcraft TA4MLX 4-pin Mini XLRM TA Series Cable Mount Connector, Large Flex Relief Image 1
Switchcraft TA4MLX 4-pin Mini XLRM TA Series Cable Mount Connector, Large Flex Relief
Our Price: $6.09
List Price: $17.37
Save up to 67% when you order by quantity!
  • Buy 25: $5.94 each.
  • Buy 50: $5.84 each.
  • Buy 100: $5.74 each.

SPECIAL FINANCING AVAILABLE

Synchrony Music & Sound Card
$1/mo* with 36 month financing. ‡
Limited Time. Learn How

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Product Overview

STYLE - Streamlined, miniaturized with nickel-plated metal and contrasting black plastic parts. Designed for light weight and unobtrusiveness. Also available in conductive black chrome finish.

CONSTRUCTION - Metal parts are rugged die-cast or precision machined with nickel-plating; plastic parts are molded of high dimensional-stability thermoplastic. Advanced design assures minimum weight consistent with strength and durability of cord plug housings.

INSERTS - Precision molded of thermoplastic for high mechanical and dielectric strength. Contacts and terminals are precision formed and plated for intimate contact and low resistance connections. Terminal numbers are molded on the rear of the insert for easy identification Inserts can be supplied for OEM installation in microphones and instrumentation for optimum connecting reliability. For cord plugs, inserts can also be supplied for replacements.

LATCHLOCK - Positive latch system assures high integrity, vibration-resistant mating and transfer of shielding connection between housing, combined with simple, easy fingertip release.

STRAIN RELIEF - Rugged internal clamp holds cable tightly, while making a secure, low resistance connection between cable shield and housing.

FLEX RELIEF - Protects by minimizing cable bending stress at point of cable entry. Maximum recommended cable diameter is .115 inch (2.92 mm) when flex relief is used.

ASSEMBLY - Connector parts are mechanically keyed for simple assembly.

POLARIZATION - Connector is mechanically keyed (latch and groove) so that it is impossible to mate them incorrectly.

"SCOOP-PROOF" FEATURE - Fully recessed pins on cannot be "scooped", bent or damaged by accidental mismating with mating connector.

COLOR ESCUTCHEONS - Attractive color escutcheons, Series TYEF, are recommended for use with Series TY(*)F and TY(*)FPC receptacles (when rear mounted) for attractive panel trim, as well as color coding one or more connectors. Colors are: red, black, gray, green, blue, white and yellow.

Switchcraft TA4MLX Specifications:

  • Electrical Specifications:
    • Contact Resistance: .010 ohms maximum after life (and after salt spray)
    • Current Rating (Carry Only): 5 A, 125 V AC (4 A, 125 V AC on 5 circuit) based on 30°C maximum
    • Insulation Resistance: 510,000 megohms minimum @ 500 V DC (initial);10,000 megohms minimum (after humidity test)
    • Dielectric Strength: 1,000 V (rms)
  • Mechanical Specifications:
    • Life: 5,000 operations minimum
    • Insertion/Withdrawal Forces (after life): 6.1 lb. (2.77 kg) after life, insertion; 5.6 lb (2.54 kg), withdrawal
    • Solderability Standard: Meets EIA RS-186-9E
    • Mechanical Shock: Meets MIL-STD-202, method 213B
    • Vibration: Meets MIL-STD-202, method 201A
    • Wire Size: #22 wire gauge solid; #24 wire gauge stranded
  • Environmental Specifications:
    • Thermal Range: -55°C to + 85°C
    • Humidity: Meets MIL-STD-202, method 106D
    • Thermal Shock: Meets MIL-STD-202, method 107D
    • Salt Spray: Meets MlL-STD-202, method 101
  • Material Specifications:
    • Housing, Plugs and Receptacles: Copper alloy, nickel-plated
    • Black Tini Q-G® Housing: Copper alloy, black chrome-plated
    • Pin and Socket Contacts: Copper alloy, silver-plated
    • Flex Relief: Molded black thermoplastic elastomer
    • Latch Button: Molded black thermoplastic
    • Release Lever and Mounting Washer: Steel, nickel-plated
    • Standoff/Ground Terminal and Cable Clamp: Steel, electro tinned
    • Inserts and Insulating Spacer: Molded, high strength thermoplastic
    • Mounting Nut: Copper alloy, nickel-plated
