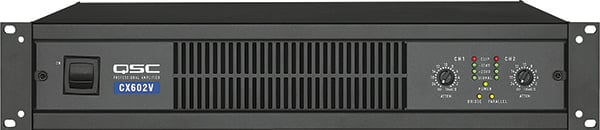

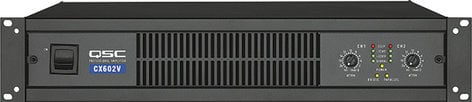

QSC CX602V
2-Channel Powered Amplifier, 400W, 70V Output

OUR PART #  CX602V

Our Price: $1,770.00
(Low Price Guarantee)
In Stock

Recommended Accessories

The all new CX Series is designed to meet the specialized needs of sound contractors. Five low impedance models and three 70-volt direct models have been designed from the ground up, combining QSC's exclusive PowerWave technology with specific features to meet the requirements of fixed installations. With high output power, versatile loading options, high thermal capacity and reliability, the CX Series is the ideal solution ot any permanently installed sound system.

The new CX amplifiers are equipped with many contractor-specific features including 1dB detented gain controls for easily repeatable settings and a custom security cover for tamper-proof installations. Active Inrush Limiting eliminates AC inrush current, cutting the need for power sequencers.

CXs also now include an HD-15 Data Port connector to interface with QSControl, QSC's computer-controlled audio system, that allows remote amplifier monitoring and control via a standard Ethernet network.

QSC CX602V Specifications:

  • Input Impedance: 6k ohms unbalanced, 12k ohms balanced
  • Input Connectors, each channel: 3-pin XLR & 3-pin detachable terminal blocks (1 each per channel)
  • Output Connectors, each channel: Safety-shrouded barrier strip
  • Amplifier Protection: Full short circuit, opencircuit, thermal, ultrasonic, and RF protection. Stable into reactive or mismatched loads
  • Load Protection: On/Off muting, DC-fault power supply shutdown
  • Dimensions (W x H x D): 19" x 3.5" x 14" (2 RU)
  • Weight: 21 lbs net
  • Power:
    • 8 ohms, Stereo Mode, Both Channels Driven: 550W
    • 70V, Stereo Mode, Both Channels Driven, 20Hz-20kHz,0.05% THD: 400W
    • 70V, Stereo Mode, Both Channels Driven, 1kHz, 0.05%THD: 440W
    • 70V, Stereo Mode, Both Channels Driven, 1kHz, 1% THD:600W
    • 16 ohms Bridged Mono Mode: 1100W
    • 140V, Bridged Mono Mode, 20Hz-20kHz, 0.1% THD: 800W
    • 140V, Bridged Mono Mode, 1kHz, 0.05% THD: 880W
    • 140V, Bridged Mono Mode, 1kHz, 1% THD: 1200W
