RDL STM2 Microphone Preamplifier, 50dB Gain

OUR PART #: STM2 MFR #: STM2

Copied to clipboard

Radio Design Labs' STM-2 is a quality low-noise microphone preamplifier designed for use in commercial sound, broadcast, and recording. ...Read more

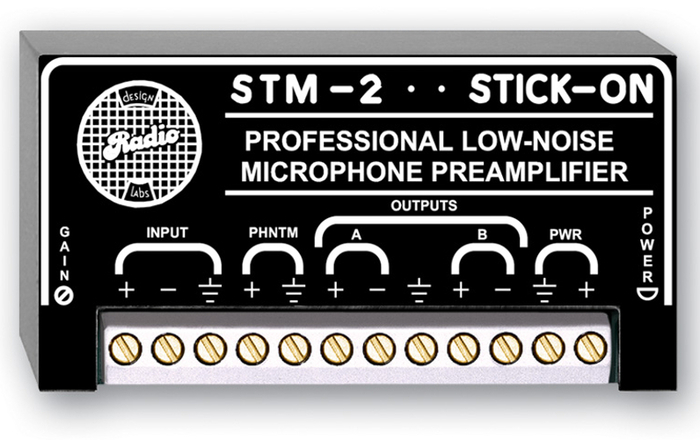

RDL STM2 Microphone Preamplifier, 50dB Gain Image 1
RDL STM2 Microphone Preamplifier, 50dB Gain
Our Price: $205.47
List Price: $273.96
You save 25%!

SPECIAL FINANCING AVAILABLE

Synchrony Music & Sound Card
$6/mo* with 36 month financing. ‡
Limited Time. Learn How

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Accessories

Product Overview

Radio Design Labs' STM-2 is a quality low-noise microphone preamplifier designed for use in commercial sound, broadcast, and recording. The STM-2 is very flexible, with gain adjustment from off to +65 dB, two balanced or unbalanced outputs, and available phantom supply input! Its ultra-low distortion and low-noise performance make it the best choice, even when larger preamps could be used! The single-ended supply input range is from 12 to 33V DC! Each output drives high or low impedance loads. The durable bottom adhesive permits quick, permanent mounting nearly anywhere–or use it with RDL's racking accessories.

Features

  • Low-noise mic preamp with 35-65dB gain
  • Adjustable output level
  • High- or low-impedance mic inputs
  • Mic input to two line outputs
  • Two balanced or unbalanced outputs

Specifications

  • Input: 500 O balanced; 5 kO unbalanced
  • Phantom: 24 Vdc; IEC 61938: 2013, Filtered
  • Outputs (2): +4 dBu 150 O balanced; -10 dBv unbalanced
  • Frequency Response: 50 Hz to 30 kHz (± 1.5 dB)
  • Gain: Adjustable 35 to 65 dB
  • THD+N: < 0.05% (50 dB Gain)
  • CMRR: >50 dB (50 Hz to 20 kHz)
  • Residual Noise: < -70 dB (below +4 dBu 150 O source @ 50 dB gain)
  • Headroom:
    • > 20 dB (24 Vdc supply)
    • > 14 dB (12 Vdc supply)
  • Phantom Power Input: 24 to 33 Vdc @ 10 mA maximum
  • Power Requirement: GROUND-REFERENCED, 24 to 33 Vdc @ 25 mA
  • Ambient Operating Environment: 0°C to 55°C
  • Dimensions (HxWxD): 0.7" x 3" x 1.6" (1.7 x 7.6 x 3.9 cm)
  • Package Type: Cardboard Box
  • Package Dimensions: 2" x 2" x 4"
  • Shipping Weight: 0.195 lbs.
  • WEEE weight: 0.145 lbs.
  • Tariff code: 8518.40.2000

Note

NOTE: Radio Design Labs' PS-24AS power supply is NOT included but is required in order to power this product. Please see the "Accessories" tab or click here for more information on the PS-24AS power supply.
