Radio Design Labs ST-EQ3
3-Band Audio Equalizer

OUR PART #  STEQ3

Our Price: $97.60
List Price: $130.55
You save 25%! (Low Price Guarantee)
Usually ships in 7-14 business days.
Need it sooner? Call us!

Recommended Accessories

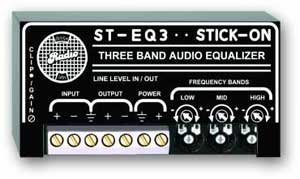

Radio Design Labs' ST-EQ3 is a unique audio equalizer in the STICK-ON product series by Radio Design Labs. The durable bottom adhesive permits quick, permanent mounting nearly anywhere, or use it with RDL's racking accessories. The ST-EQ3 offers the ultimate flexibility in audio bandwidth adjustment, with the big PLUS...you can put it right where you need it.

The ST-EQ3 features a balanced bridging input, which may also be connected unbalanced, if desired. The output driver is 150 ohm balanced, and is intended to drive unbalanced or balanced lines of 150 ohm or higher impedance. Equalization is accomplished by three active circuits, each controlling a separate audio band. These bands were carefully selected to yield a module that works effectively in a wide variety of systems. Each band's center frequency can be either boosted or attenuated by at least 12 dB. The Q of the low and high band equalizers was selected so that those controls can be functionally considered as a total bass band or treble band control. The midrange control is optimized to voice-band adjustment, with the overlap tailored to provide smooth operation for wide band music applications.

NOTE: Radio Design Labs' PS-24AS power supply is NOT included but is required in order to power this product.  Please see the "Accessories" tab or click here for more information on the PS-24AS power supply.

A feature unique to the ST-EQ3 is the CLIP indicating LED. When audio signals are equalized, the boosted level can cause the output circuit to clip. Or alternatively, if prominent frequencies are attenuated, the input is likely to be turned up so that its amplifier can clip. In either event, there is a risk of distortion. Unlike many products which show only input clipping, the ST-EQ3s CLIP indicator flashes if either the input or output stages will clip!

Specifications:

  • Input: 100 kohm balanced or unbalanced bridging; line level
  • Gain: Adjustable OFF to unity (+/- EQ Adj.)
  • THD: less than 0.030%; 0.010% typ. (1 kHz, +4 dBu ref.; flat response)
  • CMRR: greater than 60 dB @ 100 Hz
  • Frequency Response:
    • Into 600 ohm: 20 Hz - 22 kHz (EQ set flat; +/- 0.5 dB)
    • Into bridging load: 10 Hz - 22 kHz (EQ set flat; +/- 0.5 dB)
  • Noise: less than -80 dB below +4 dBu
  • Equalization:
    • Center frequencies:
      • Low Band: 80 Hz
      • Mid Band: 1 kHz
      • High Band: 30 kHz
    • Bandwidth at 3 dB EQ:
      • Low Band: 20 Hz - 300 Hz
      • Mid Band: 200 Hz - 7 kHz
      • High Band: 3 kHz - 30 kHz
  • Power Requirement: 24 to 33 Vdc @ 25 mA, Ground-referenced
