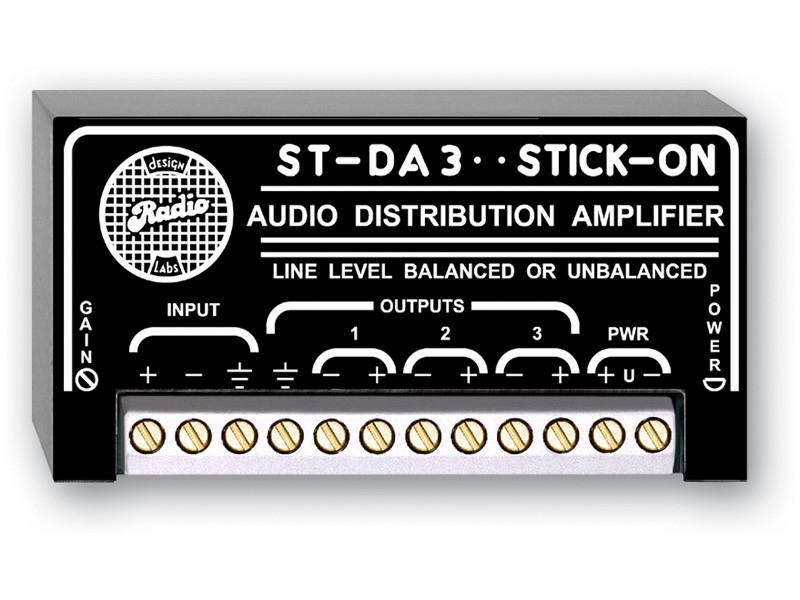

Radio Design Labs ST-DA3
1x3 Line Level Distribution Amplifier

OUR PART #  STDA3

Our Price: $142.19
List Price: $190.19
You save 25%! (Low Price Guarantee)
In Stock

Recommended Accessories

The ST-DA3 gives you the advantages of an audio distribution amplifier PLUS you can put it where you need it. The ST-DA3 allows bridging of any audio line, adjusting the gain, and driving either high or low impedance, balanced or unbalanced loads. The ST-DA3's wideband circuitry produces the unsurpassed pure clarity, ultra-low distortion and low noise for which RDL products are known.

NOTE: Radio Design Labs' PS-24AS power supply is NOT included but is required in order to power this product.  Please see the "Accessories" tab or click here for more information on the PS-24AS power supply.

Radio Design Labs ST-DA3 Features:

  • Functions as an electronic transformer
  • Provides isolation, gain, and three outputs
  • Wideband amplifiers produce impeccable audio
  • Operates from ground-referenced, floating or bipolar power supply
  • Ultra-low distortion
  • Ultra-low noise
  • Excellent phase response
  • Gain adjustment 17 dB above or below unity
  • Ample headroom at operating level
  • Recessed multi-turn audio taper gain trimmer for precise control
  • Input and outputs are RF protected
  • Full operation in either high or low impedance circuits
  • Outputs are short circuit protected
  • Positive connections via barrier block

Radio Design Labs ST-DA3 Specifications:

  • Input: 20 kohm balanced or unbalanced
  • Input Signal: -15 dBV to +21 dBu (for +4 dBu output)
  • Maximum Input Level: +24 dBu
  • Outputs (3): 150 ohm balanced or 75 ohm unbalanced
  • Output Signal:
        * Balanced: +4 dBu nominalbalanced
        * Unbalanced: 6 dB below balanced line level
  • Maximum Output Level: +25 dBu
  • Frequency Response: 10 Hz to 100 kHz (+/- 0.05 dB)
  • THD+N:< 0.002% (unity gain)
  • IMD:< 0.003% (unity gain)
  • Noise below +4 dBu:< -98 dB (unity gain)
  • Headroom:> 20 dB (above +4 dBu)
  • Gain: Unity +/- 17 dB (adjustable)
  • CMRR:> 60 dB (50 Hz to 120 Hz)
  • Power Requirement: Ground-Referenced or Floating 24 to 33 Vdc @ 70 mA
