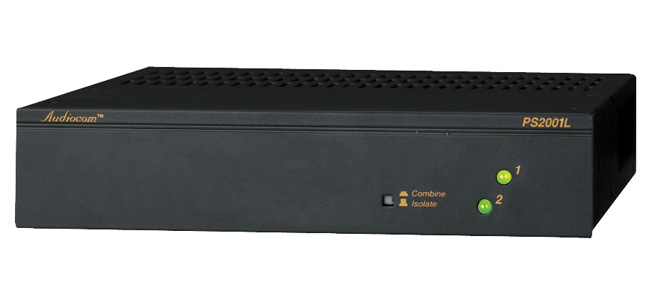

Telex PS2001L
2-channel Audiocom Power Supply

OUR PART #  PS2001L

Our Price: $647.00
List Price: $653.00
(Low Price Guarantee)
In Stock

Recommended Accessories

The Telex PS2001L power supply supplies two isolated channels of intercom system phantom power to down line components. Intercom power channels may be combined via the Combine/Isolate switch to form a single intercom power channel with double the capacity for large party-line applications. The PS2001 may be combined with a US2000A User Station to create a two channel master station configuration or as a stand alone power supply. The resultant Master Station would be a headset only station, as the PS2001 does not have an integrated speaker. Rack mountable in a variety of modular configurations with one of several optional rack mount kits. Like all of Audiocom's new two channel power supplies the PS2001 now comes standard with revolutionary IAR (Instantaneous Auto Reset) technology for performance and safety. This and all Audiocom power supplies can operate in an unbalanced mode to be completely Clear-Com® compatible.

Telex PS2001L Features:

  • Channel Status Indicator: The indicators are green for normal operation and red to warn of an overload or short circuit. The system resets itself once the overload or short circuit is located.
  • Combine/Isolate Switch: Combines the audio signal of the two channels to create one powerful channel. Press the switch to combine the channels or leave the switch depressed to isolate the two channels.
  • Intercom Channel Connectors: When the Isolate position on the Combine/Isolate switch is selected, each channel connector is individually powered and has completely separate intercom audio. When the Combine position is selected, each channel is still powered separately, but the audio sign
  • Balanced and Unbalanced Selector Switch: Gives the user the choice to configure the unit for use in either an Audiocom® (Balanced) or Clear-Com (Unbalanced) system. The default setting is for “balanced”.

Telex PS2001L Specifications:

  • Input Power Requirement: 100 to 240 VAC, 50/60 Hz
  • Output Power (each channel): 24 +/-1 VDC, 2 A
  • Dimensions (H x W x D): 1.75" x 8.25" x 10.31" (44.5x 209.5 x 261.9 mm)
  • Weight: approx. 2.5 lbs (1.13 kg)
  • Environmental Requirements
    • Storage: -20° to 80° C, 0-95% humidity, non-condensing
    • Operating: 0° to 50° C, 0-95% humidity, non-condensing
  • Connector Type: One XLR-3M audio connector for each channel. Pin-out depends on setting BAL/UNBAL switch for balanced orunbalanced operation as defined below:
    • Balnced Mode (set to BAL position)
      • Line Terminating Impedance: 300 ohms +/-10%
      • Connector Pin-out: Pin 1-Common (audio and DC return); Pin 2-Full-duplex, balanced intercom audio and +24 VDC output; Pin 3-Full-duplex, balanced intercom audio and +24 VDC output
    • Unbalanced Mode (set to UNBAL position)
      • Line Terminating Impedance: 200 ohms +/-5%
      • Connector Pin-out: Pin 1-Common (audio and DC return); Pin 2-+/-30 +/-1 VDC output; Pin 3-Full-duplex, unbalanced intercom audio high
  • Approvals UL, CUL, CE
