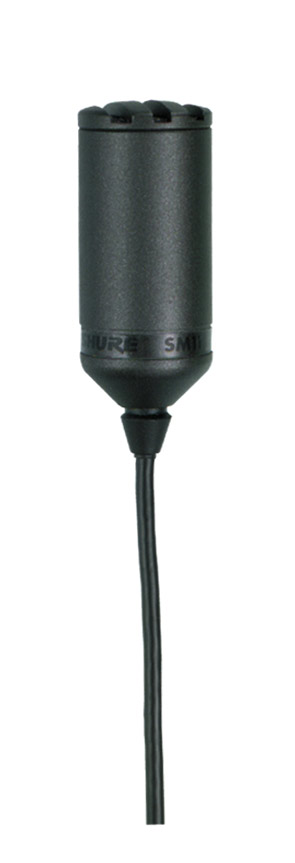

Shure SM11-CN Omni Dynamic Lavalier Mic with 4' Cable and XLR Connector

The Shure Model SM11 is a miniature dynamic lavalier microphone designed for use in television broadcasting (on camera), for sound reinforcement, in certain radio and motion picture applications, and similar uses where a small, professional-quality, microphone is required. The SM11 has an omnidirectional pickup pattern, and its frequency response is optimized for lavalier use.

The microphone is supplied with a tie clasp assembly, tie tack assembly, connector belt clip, and zippered carrying/storage bag. An optional kit for mounting the SM11 on various musical instruments is available as Shure Model RK279.

Shure SM11 Features:

• Frequency response optimized for lavalier use. Acoustically matches mostst and- or desk-mounted microphones
• Small and lightweight for unobtrusive, virtually unseen operation
• Smooth exterior and recessed grille screen minimize clothing noise
• Rugged aluminum case construction
• Extremely flexible long-life cable
• Two mounting options–tie clasp or tie tack
• Convenient, secure belt clip attaches connector to belt or clothing

Shure SM11 Specifications:

• Type: Dynamic
• Frequency Response: 50 to 15,000 Hz
• Polar Pattern: Omnidirectional
• Impedance: Microphone rating impedance is 150 ohms (200 ohms actual) for connection to microphone inputs rated at 19 to 300 ohms
• Output Level (at 1,000 Hz), Open Circuit Voltage: -64 dBV/Pa (0.60mV)
• Polarity: Positive pressure on diaphragm produces positive voltage on pin 2 with respect to pin 3
• Hum Pickup: 35 dB equivalent SPL in a 1 millioersted field
• Cable: Non-detachable, 1.2m (48"), two-conductor, shielded, plastic-covered
• Connector: Professional three-pin audio (XLR)
• Case: Aluminum with gray enamel finish
• Dimensions (Mic Capsule): 14.29mm (9/16") diameter, 38.1mm (1 1/2") length
• Net Weight: 7.9 grams (0.28 oz), less cable and connector
