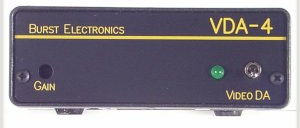

Burst Electronics VDA4YC
1x4 S-Video Distribution Amplifier

OUR PART #:  VDA4YC

The four output VDA-4YC is a compact unit featuring a looping input.
Learn More
Our Price: $335.06
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

Burst Electronics VDA4YC
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The four output VDA-4YC is a compact unit featuring a looping input. A wide bandwidth of 33 MHz assures clean video, Small enough to fit most anywhere but with no sacrifice in performance. Gain is adjustable plus or minus 3 dB. There is an internal jumper to select 75 Ohm termination, no need for an external terminator. Enclosure that can be for either table top use or rack mounted using the optional RM-4.

Specifications:

  • Input: 1 volt standard video
  • Input Impedance: Hi-Z or 751/2, looping (jumper selected)
  • Coupling: DC throughout
  • Internal Power: Plus & Minus 5 Vdc derived from ext.12 Volt
  • Outputs: Four, 751/2
  • Output Voltage: 4 Vpp max
  • Delay Input to Output: 10 nS
  • Output Impedance: 751/2 1%
  • Frequency Response: DC - 33MHz 0.2dB
  • Gain: Unity, adjustable plus/minus 3dB
  • Diff.Gain: 0.1%
  • Diff.Phase: 0.1 degrees
  • Video Connector: 4-pin mini DIN
  • Output Protection: Open or Short, infinite duration
  • Power: 120VAC 60Hz, 3 Watts, UL Listed Wall Module (incl.)
  • DC Powered: 10-16 Vdc (polarity insensitive), 150 mAdc
  • Size (Micro DA): 4.4W x 2.4H x 1.3D inches
  • Size (VDA-4): 4.2W x 1.5H x 5.5D inches
  • Rack Mount: Optional, Model RM-4
