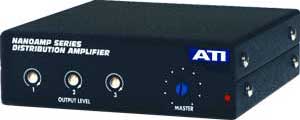

Audio Technologies Inc. DA103
Distribution Amp, 1x3

OUR PART #:  DA103

The NANOAMP MIC and Line level 1X3 Distribution Amplifiers consist of independent +22dBm servo balanced outputs in 1/3 RU enclosure.
Learn More
Our Price: $463.60
List Price: $475.00
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Audio Technologies Inc. DA103
Qty:
Please call for availability.

Similar Products

The NANOAMP MIC and Line level 1X3 Distribution Amplifiers consist of independent +22dBm servo balanced outputs in 1/3 RU enclosure. The master gain controls have three output trim pots. The DA103 accepts a line level input, balanced or unbalanced audio at –20, -10 or +4dBu nominal and provides a line level output at +4dBm nominal level to balanced or unbalanced output lines. The DA103 input/output connectors are two piece solderless “Phoenix” types, individual for each input and output line.

The DA103 accepts a maximum line input level of +22dBu to high impedance (20Kohms) balanced instrumentation amplifier input (A1) and drives three servo balanced 600-ohm (minimum load) outputs (A3, A4, A5) up to +22dBm maximum. An internal input gain setting jumper plug optimizes the input stage gain, noise and headroom for nominal inputs at -20, -10 or +4dBu. The servo-balanced outputs automatically detect single-ended (one side grounded) loads; remove the drive signal from the grounded output and double the signal applied to the ungrounded output thus maintaining equal gain for both types of loading.

Features

  • Independent servo balanced outputs
  • Master gain control
  • DIP selection
  • Phantom power
  • MIC/Line gain
