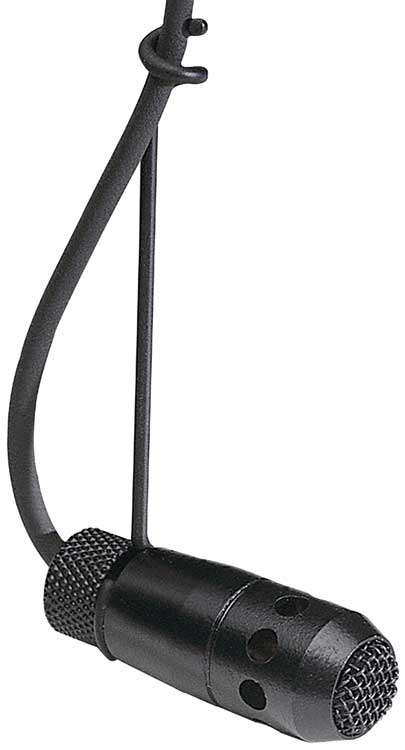

Electro-Voice RE90H
Condenser Cardioid Hanging Microphone, Black.

OUR PART #:  RE90H

The RE90H and RE90WH of the Architectural Microphone Series are back electret condenser hanging microphones providing an extended...
Learn More
Our Price: $317.00

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Electro-Voice RE90H
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products
The RE90H and RE90WH of the Architectural Microphone Series are back electret condenser hanging microphones providing an extended, flat frequency response with a controlled cardioid polar pattern for high-quality sound reinforcement. The RE90H is specifically designed for live pickup of choirs, instrumental and vocal groups, and theater. The size and color of the transducer and cable allow the microphone to blend in with its surroundings.The RE90H’s low self-noise and high-out-put signal level combine to produce low-noise, sound-reinforcement and recording. Exceptionally high sensitivity, a uniform car-dioid polar response, and smooth frequency response make the RE90H ideally suited for distant sound pick-up. The cardioid polar pattern is precisely controlled and is highly effective in suppressing feedback without coloration of sound. Power for the RE90H is obtained from any phantom source supplying 9 to 52 volts. The RE90H is furnished with 25 feet of black (RE90H) or white (RE90WH) miniature braided shielded cable. The design of the cable ensures the microphone’s horizontal position will be held stable without the need for fish-line tethering.The RE90H is easily aimed at the performance with the supplied steel wire hanger and holding nut. The wire hanger attached to the microphone element and cable can be bent to aim the microphone in the vertical plane. To position the microphone on the horizontal plane, loosen the holding nut on the back of the microphone and slightly twist the microphone on the wire holder (clock-wise rotation rotates the RE90H to the left; counterclockwise rotation rotates the RE90H to the right). Secure this position by tightening the holding nut. Note: For fixed installations, allow the microphone cable to hang for at least 24 hours so the cable can completely relax and establish a set. This allows the microphone to be accurately positioned over a choir, stage or orchestra.

Features
  • Non-reflecting black (RE90H) or low-gloss white (RE90WH) with matching cable
  • Shielded pre-amp is highly-resistant to electrical noise and radio frequency interference
  • 25-ft. braided, shielded cable maintains microphone's position (not rotation)
  • Cardioid polar pattern
  • Three-pin male XLR-type output connector fits with female bulkhead XLR-type connector
Specifications
  • Generation Element: Condenser, back electret
  • Frequency Response: 75 Hz to 15,000 Hz
  • Polar Pattern: Cardioid
  • Sensitivity, Open Circuit Voltage, 1 kHz: 27 mV/pascal
  • Power Level, 1 kHz (0 dB = 1 mW/pascal): -30.4 dB
  • Clipping Level (1% THD): 120 dB SPL
  • Equivalent Noise: 25 dB SPL A weighted
  • Dynamic Range: 95 dB
  • Output Impedance, 1 kHz: 200 ohms
  • Power Requirements: 9 to 52 V dc phantom supply
  • Current Consumption: 2.0 mA
  • Polarity: Pin 2 positive, referenced to pin 3, with positive pressure on the diaphragm
  • Color: Low-gloss black
  • Environmental Conditions
    • Relative Humidity 0-50%: -29° to 74°C (-20° to 165°F)
    • Relative Humidity 0 to 95%: -29° to 57°C (-20° to 135°F)
  • Dimensions
    • Transducer: 12.7 mm (0.4 in.) diameter, 36.8 mm (1.45 in.) long
    • Microphone Cable: 7.6 m (25 ft) long
    • Electronics Module: 94 mm (3.7 in.) long, 19 mm (0.75 in.) diameter
  • Net Weight: 157 grams (5.5 oz)
  • Shipping Weight: 324 grams (11.4 oz)
