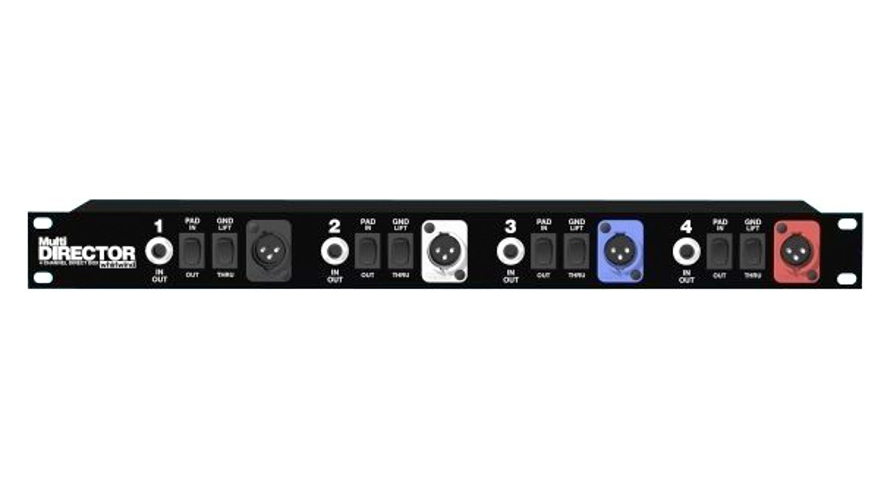

Whirlwind MULTIDIRECTOR 4-Channel Rackmount Direct Box

Whirlwind's MultiDirector is a 4-channel rack-mount Direct Box that converts a line, instrument or speaker level signal to a low impedance mic level. Channel inputs are Hi-Z bridging and each has three 1/4" jacks (2 on rear of unit for easy patching). Each channel has a 20dB pad switch as well as a ground lift switch. It utilizes the TRHL-M transformer.

Specifications

• Frequency Response: 20 to 20k Hz. ± 1dB
• Input Impedance: 20 KOhm
• Output Impedance: 150 Ohm
• Signal Loss (I/O): - 20 dB, (- 40dB pad in)
• Dimensions (WxHxD): 19” x 1.75” x 5.25” (482.6 x 44.5 x 133.4 mm)
• Shipping Weight: 6.5 lbs. (2.95kg)
• Unit Weight: 5.0 lbs. (2.27kg)
