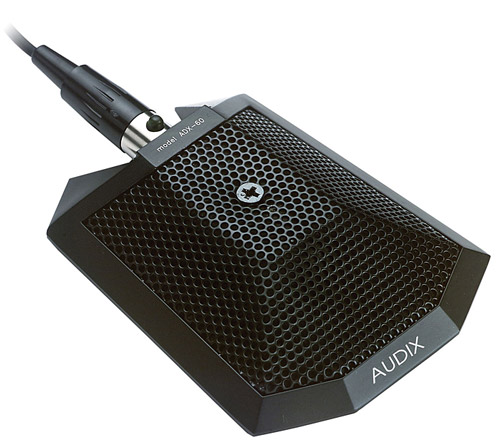

Audix ADX60
Boundary Condenser Microphone

OUR PART #:  ADX60

The ADX-60 is a pre-polarized condenser microphone designed to handle a wide variety of recording and live sound applications as well as permanent installations.
Learn More
Our Price: $219.00
List Price: $245.00
You save 11%!
Write the first review.
Audix ADX60
Qty:
In Stock

Related Products

The ADX-60 is a pre-polarized condenser microphone designed to handle a wide variety of recording and live sound applications as well as permanent installations. Ideal for podium, room ambience, theatre, plays, choirs, video, teleconferencing and musical applications such as piano and kick drum.

Available in 3 models, the stock ADX-60 is equipped with a cardioid element. There is a choice of two other interchangeable capsules: Omni-directional (ADX60-om), or Hypercardioid (ADX60-hc).

With a smooth uniform response over a frequency range of 50Hz - 18 kHz, the ADX-60 is provides a warm, fullbodied sound not typical of microphones this size. Housed in a heavy-duty zinc die-cast base with a low reflective black e-coat finish. Operating on phantom power (9-52 volts), the ADX-60 is supplied with an inline preamplifier (APS-910) and 25' of detachable shielded microphone cable. If phantom power is not available, there is an optional power supply (APS-911) that operates in phantom or battery mode. Low noise electronic circuitry and balanced output allow interference-free performance even with long cable runs.

Applications:

  • Meetings, presentations, conferences
  • Low profile podium mic
  • Video / teleconferencing
  • Theatre / school plays
  • Kick drum, piano
  • Sporting events

Audix ADX-60 Specifications:

  • Transducer Type: Condenser (pre-polarized)
  • Frequency Response:
       * Cardioid / Hypercardioid50 Hz - 18 kHz
       * Omni 20 - 18 kHz
  • Polar Pattern: ADX60-c (cardioid), ADX60-om (omni), ADX60-hc (hypercardioid)
  • Output Impedance: 250 Ohms balanced
  • Open Circuit Sensitivity:
       * Cardioid /Hypercardioid 5.5 mV
       * Omnidirectional 4.3 mV
  • Equivalent Noise Level: 29 dB (A weighted)
  • Signal to Noise Ratio: 65 dB (ref 1k @ 1 Pascal)
  • Power Requirements: 9 - 52v phantom
  • Maximum SPL: 130 dB
  • Cable/Connector: Mini Swithcraft 3 pin, male XLR connector
  • Polarity: Positive voltage on pin 2 relative to pin 3 of output XLR connector
  • Housing: Die Cast Zinc case with Machined Brass capsule
  • Weight: 5 oz. (143 g)
