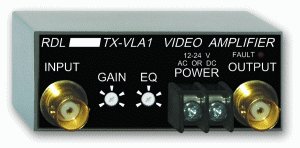

Radio Design Labs TX-VLA1
Video Amplifier

OUR PART #  TXVLA1

Our Price: $165.62
List Price: $221.54
You save 25%!
Usually ships in 7-14 business days.
Need it sooner? Call us!

Recommended Accessories

For driving low video signals and driving video lines up to 2000 feet.

  • Boost Video Levels
  • Adjustable Video Level
  • Adjustable Equalization
  • Drive Long Video Lines
  • Video Amplifier Powered from Available Voltage Sources
  • High-Quality Video in Small Size
  • NTSC or PAL

NOTE: Radio Design Labs' PS-24AS power supply is NOT included but is required in order to power this product.  Please see the "Accessories" tab or click here for more information on the PS-24AS power supply.

Radio Design Labs' TX-VLA1 is the ideal choice in installations where video signals are being fed into long cables, or where a low video signal needs to be amplified. The unique power supply input allows the TX-VLA1 to be powered from a wide variety of existing ac or dc power sources.

Security or surveillance cameras are frequently located significant distances from monitoring or recording equipment. Cable losses produce a decrease in the overall video level. High frequency attenuation in the cable produces additional loss of higher frequency components of the video signals. These combined losses result in degradation of color signals, and decreased resolution in monochrome images. The TX-VLA1 can be located right at the camera and adjusted to compensate for both losses. GAIN and EQ may be adjusted on the TX-VLA1 to drive video cables as long as 2000 feet (600 meters).

The TX-VLA1 is supplied with a chart showing recommended beginning settings of GAIN and EQ for various lengths of cable. The settings may then be further fine tuned for an optimum, high-quality video transmission.

Specification

  • Input: 75 O, BNC, Ground-referenced
  • Input Level: 1 V p-p video
  • Gain: Unity to +5 dB (adjustable)
  • Bandwidth: 10 MHz
  • Equalization Adjustment: Flat to +4 dB @ 3.58 MHz (adjustable) Flat to +7 dB @ 5 MHz (adjustable)
  • Equalization Curve: Optimized at each setting for flattest response of video signal components without square-wave overshoot
  • Residual Noise: < -65 dB (referenced to 1 V p-p)
  • Output: 75 O source terminated, BNC, Ground referenced
  • Power Requirement: GROUND-REFERENCED 12 to 33 Vdc or 12 to 24 Vac, @ 30 mA
24 VDC 500mA Switching Power Supply
Radio Design Labs PS-24AS 24 VDC 500mA Switching Power Supply
Radio Design Labs' PS-24AS is a 24 VDC switching power supply with a North American AC plug, 500 mA, DC plug. Compatible with RDL's RU-SM16D (sold separately).Radio Design Labs PS-24AS Specifications: Input: 100 to 240 VAC ...
