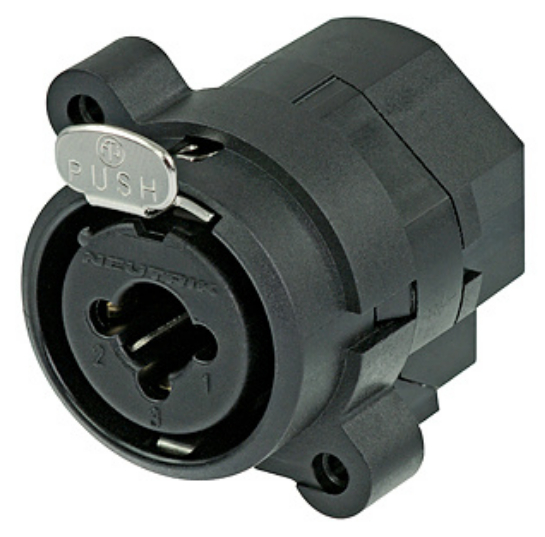

Neutrik NCJ10FI-S
Combo 1/4" + 3-pin XLR Female Receptacle with Stereo Switching Jack & Solder Cups

OUR PART #:  NCJ10FI-S

The Neutrik NCJ10FI-S is a 3-pole XLR female receptacle with 1/4" switching ground and stereo jack. Also features solder cups for wire termination.
Learn More
Our Price: $3.43
List Price: $4.86
Save up to 41% when you order by quantity!
  • Buy 25: $3.09 each.
  • Buy 50: $2.98 each.
  • Buy 100: $2.87 each.

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Neutrik NCJ10FI-S
Qty:
Similar Products

The Neutrik NCJ10FI-S is a 3-pole XLR female receptacle with 1/4" switching ground and stereo jack. Also features solder cups for wire termination.

Neutrik NCJ10FI-S Features:

  • Combined XLR receptacle and 1/4" phone jack
  • Balanced or line inputs in one XLR shell
  • Saves rack space by combining 2 connectors in one housing
  • Very low conductor capacitance, therefore suitable for digital audio

Neutrik NCJ10FI-S Electrical Specifications:

  • Contact resistance: XLR: < 10 m ohm
  • Jack: < 20 m ohm
  • Rated current: 7.5 A
  • Rated voltage: 50 V ac
  • Insulation resistance: > 500 M ohm after damp heat test
  • Dielectric strength: 1500 V dc
  • Capacitance: < 2 pF

Neutrik NCJ10FI-S Mechanical Specifications:

  • Engagement / separation force: XLR: < 25 N / > 15 N
  • Jack: < 25 N / 15 - 25 N
  • Solderability: complies with IEC 68-2-20
  • Applicable Standard: EIA RS-453 for jack

Neutrik NCJ10FI-S Material Specifications:

  • Shell: Polyamid, PA 6.6 30% GR
  • Contacts of Jack and XLR: CuSn6
  • Contact plating: XLR and switch contacts: galv. Au Jack and Ground: galv.Ag
  • Temperature range: -20°C to +65°C
