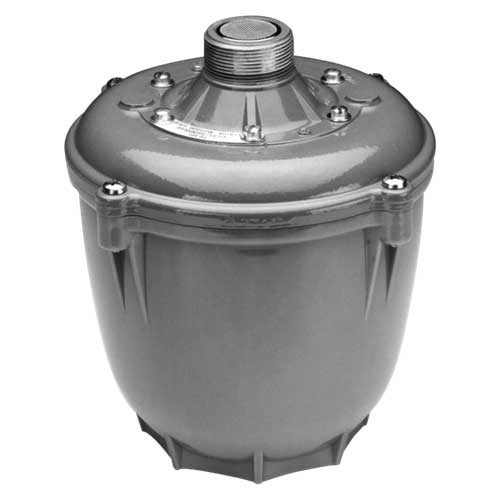

Atlas Sound PD60AT
High Efficiency 60-Watt Compression Driver w/ Transformer

OUR PART #:  PD60AT

Atlas Sound Model PD-60AT is a versatile, 60 watt, high power compression driver designed for use in conjunction with Atlas Sound large format horns (Models CJ-46...
Learn More
Our Price: $220.99
List Price: $275.99
You save 20%!

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Atlas Sound PD60AT
Qty:
In Stock

Similar Products

Atlas Sound Model PD-60AT is a versatile, 60 watt, high power compression driver designed for use in conjunction with Atlas Sound large format horns (Models CJ-46, BIA-100, DR Series) or other similar equipment. Drivers provide maximum efficiency and extended heavy-duty performance. Combined with Atlas Sound horns, PD-60A Series Models offer quality and durability to assure optimum penetration and excellent intelligibility in professional and commercial audio systems where sound projection and frequency response are demanded. PD-60A Series drivers will provide powerful audio or signal reproduction with superior wide-range fidelity.

Units are ideal for commercial sound, signaling and public-address systems in applications such as manufacturing, recreation and sports facilities, exhibit halls, commercial centers, shipping and transportation terminals, malls, storage areas and warehouses, etc.

Model PD-60AT is a fully environment-resistant 60 watt driver for indoor or outdoor application and is recommended for use in expansive and/or high ambient sound-level areas. Models feature sound chamber, phasing plug, magnetic-structure components machined to optimum tolerances, 2" voice coil and offer a plane wave frequency response of 100-3,700 Hz (+5dB).

The PD-60AT features a built-in varnish impregnated, multi-tap 70 volt line-matching transformer. Corrosion-resistant terminal connections are protected by a transparent, impact-resistant plastic cover which provides strain relief for the interconnecting cable.

The PD-60AT is terminated in standard 1.375"-18" thread male couplings for use with screw-on horns, or with Atlas Sound Model DA-FH and YDA-TH adapters for bolt-on large format horns. Diaphragms are replaceable with appropriate equipment. Internal components are enclosed within protective die-cast housing and finished in grey baked epoxy.

Features

  • Outstanding sound reproduction and power-handling forsignaling, music and public address systems
  • Extended frequency response range for Optimumintelligibility
  • 60 watt power rating
  • Envrionment-resistant construction for indoor/outdoor use

Specifications

  • Power Rating: 60W
  • Plane Wave Freq. Response: 100-3,700 Hz
  • Low Freq. Limit @ Full Power: 300 Hz
  • Sound Level: 112.7 (avg)
  • Impedance: 2k, 1k, 500, 250, 125, 85, 16
  • Power Taps: 70.7V @ 2.5, 5, 10, 20, 40, 60
  • Voice Coil: 2"
  • Dimensions: 6 7/8" H x 6 3/8" W
  • Weight: 8 lbs
