Atlas IED PD60A 60W 16 Ohm Compression Driver Unit for Large Format Horn Loudspeakers

OUR PART #: PD60A MFR #: PD60A

Copied to clipboard

A fully environment-resistant 60 watt driver made for indoor or outdoor applications... ...Read more

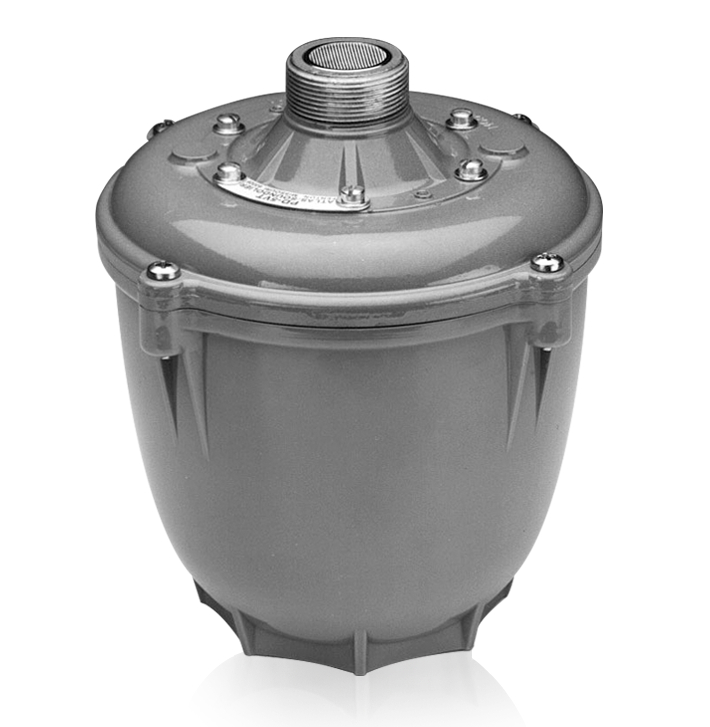

Atlas IED PD60A 60W 16 Ohm Compression Driver Unit For Large Format Horn Loudspeakers Image 1
Atlas IED PD60A 60W 16 Ohm Compression Driver Unit For Large Format Horn Loudspeakers
Our Price: $224.99
List Price: $279.99
You save 20%!

SPECIAL FINANCING AVAILABLE

Synchrony Music & Sound Card
$7/mo* with 36 month financing. ‡
Limited Time. Learn How

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Replacement Parts

Product Overview

A fully environment-resistant 60 watt driver made for indoor or outdoor applications, the AtlasIED PD-60A is recommended for use in expansive and/or high ambient sound-level areas. It features sound chamber, phasing plug, magnetic-structure components machined to optimum tolerances, 2" voice coil and offers a plane wave frequency response of 100-3,700 Hz (+5dB). It provides screw-type terminals for matching direct to the 16 ohms voice coil impedance. Corrosion-resistant terminal connections are protected by a transparent, impact-resistant plastic cover that also provides strain relief for the interconnecting cable.

Terminated in standard 1.375"-18" thread male couplings for use with screw-on horns, or with Atlas Sound Model DA-FH and YDA-TH adapters for bolt-on large format horns. Diaphragms are replaceable with appropriate equipment.

Its internal components are enclosed within a protective die-cast housing and finished in grey baked epoxy.

It's great for applications such as: commercial sound, signaling and public-address systems in applications such as manufacturing, recreation and sports facilities, exhibit halls, commercial centers, shipping and transportation terminals, malls, storage areas and warehouses, and more.

AtlasIED PD-60A Features:

  • Delivers outstanding sound reproduction and power-handling for signaling, music, and public address systems
  • Extended frequency response range for optimum intelligibility
  • 60-watt power rating
  • Environment-resistant construction for indoor/outdoor use
  • Ideal for high-power public address systems
  • Compatible with CJ-46 BIA100 and DR Series Horns

AtlasIED PD-60A Specifications:

  • Power Rating: 60W
  • Plane Wave Freq. Response: 100-3,700 Hz
  • Low Freq. Limit @ Full Power: 300 Hz
  • Sound Level Sensitivity: 112.7 (avg) 100-3,700 Hz
  • Impedance: 16 Ohms (nom.)
  • Voice Coil: 2"
  • Dimensions (H x W): 6-7/8" x 6-3/8" (17.46 x 16.19cm)
  • Weight: 8.66 lbs (3.93 kg)
