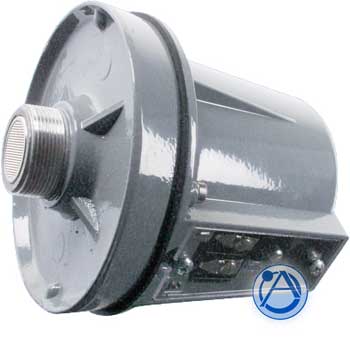

Atlas Sound PD30T
High Efficiency 30-Watt Compression Driver with Transformer

OUR PART #:  PD30T

The Atlas Sound Model PD-30T is a versatile, medium-power compression driver designed for maximum efficiency and extended heavy-duty performance.
Learn More
Our Price: $105.99
List Price: $132.99
You save 20%!
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Atlas Sound PD30T
Qty:
In Stock

Similar Products

The Atlas Sound Model PD-30T is a versatile, medium-power compression driver designed for maximum efficiency and extended heavy-duty performance. Combined with Atlas Sound horns, PD Series Models offer quality and durability to assure optimum penetration and excellent intelligibility in professional and commercial audio systems.

Units are ideal for commercial sound, signaling and public-address systems in applications such as manufacturing, recreation and sports facilities, exhibit halls, commercial centers, shipping and transportation terminals, malls, storage areas and warehouses, etc.

The PD-30T is fully environment-resistant for indoor or outdoor applications and recommended for use in expansive and/or high-ambient sound-level areas. Units have a power rating of 30 watts, a 1.5" voice coil and a plance wave frequency response of 300-3,900 Hz (+5dB).

Transformer-equipped Model PD-30T incorporates the exclusive Atlas Sound Vari-Tap Control/Connect Center with a screwdriver selectable ohms/watts switch. This time saving configuration eliminates the soldering iron as an installation tool.

The integral 70V line matching transformer is varnish impregnated for maximum environmen-resistance and life expectancy. It also includes a protective terminal cover with built-in strain relief to assure secure cable connection.

Terminated in standard 1-3/8"-18" thread male couplings for use with screw-on horns, or with Atlas Sound Model DA-FH adapter for bolt-on type horns.

Atlas Sound PD30T Features:

  • Outstanding Sound Reproduction and Power-Handling For Signaling, Music and Public Address Systems
  • Extended Frequency Response Range for Optimum Intelligibility
  • 30-Watt Power Rating
  • Environment-Resistant Construction for Indoor/Outdoor Use

Atlas Sound PD30T Specifications:

  • Power Rating: 30W
  • Plane Wave Freq. Response: 300-3,900Hz
  • Low Freq. Limit @ Full Power: 500 Hz
  • Sound Level: 113.6 (avg), 300-3,900 Hz
  • Impedance: 45, 89, 167, 333, 666, 1300, 2500
  • Power Taps: 70.7V @ 1.8, 3.7, 7.5, 15, 30
  • Voice Coil: 1.5"
  • Dimensions: 4.5" H x 4.5" Dia.
  • Weight: 4.75 lbs
