OUR PART # FP-2-WHIRLWIND

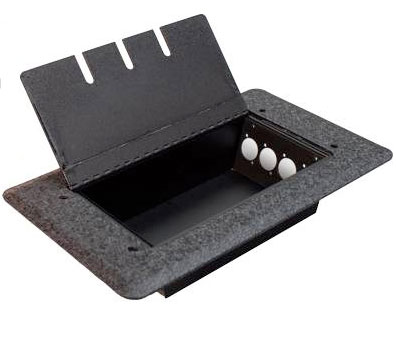

Constructed of 11 gauge steel, the FP-2 permits flush installation for safe, reliable connections. It incorporates a black carpet trim ring with a beveled edge. Two cable-clearance slots in the door allow it to close over cables when in use.
Interchangeable end panels are supplied with the FP-2. One is solid metal which allows the user to punch or drill it to their own individual specifications. The other is pre-punched to accept four Whirlwind XLR or TRS jacks. The FP-2 provides panels on both ends.
The bottom plates are also removeable to facilitate additional hole punching and connector mounting. Any or all of these may be ordered custom punched and/or loaded by Whirlwind.
The optional back boxes (FP-1BB, FP-1BB6, FP-2BB and FP-2BB6) have three sets of knockouts on each side.
The FP-2 is UL-listed and CSA approved.
Outside Dimensions: 12" x 6 " x 4"
