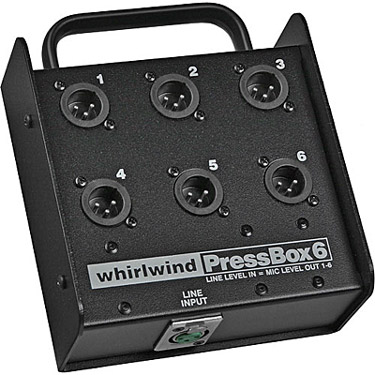

Whirlwind PB06
1 In x 6 Out Press Box

OUR PART #  PB06

Our Price: $300.00
List Price: $465.12
You save 36%! (Low Price Guarantee)
Usually ships in 7-14 business days.
Need it sooner? Call us!

The Whirlwind PB06 is a passive 1 line level input, 6 mic. level output press box   The PB Series expands mic outputs when used with line outs on PRESSPOWER2 or PRESSMITE active press boxes or any time a line level feed is available.

These passive units distribute one line level input to six mic level outputs*. Each output is transformer isolated, provides excellent interchannel isolation and is ground lifted to help eliminate noise problems. Whirlwind TRSP-2F transformers are used throughout. (*Line level signal MUST be provided into this passive press box. A microphone directly into the input will not provide enough signal level for proper operation.)

The boxes are constructed with rugged, cold-rolled steel. Dimensions (L x W x D): 6.75" x 5.5" x 2"

Also available with 12 or 24 outputs.

Whirlwind PB06 Specifications:

  • Input Impedance:  2k Ohms
  • Output Impedance:  150 Ohms
  • Operating Level:  0dB input = -43dB output
  • Channel-to-channel Isolation:  65dB between vertically adjacent channel pairs, 107 dB between non-vertically adjacent pairs

Whirlwind PB06
1 In x 6 Out Press Box

OUR PART #  PB06

Product Information:

The Whirlwind PB06 is a passive 1 line level input, 6 mic. level output press box   The PB Series expands mic outputs when used with line outs on PRESSPOWER2 or PRESSMITE active press boxes or any time a line level feed is available.

These passive units distribute one line level input to six mic level outputs*. Each output is transformer isolated, provides excellent interchannel isolation and is ground lifted to help eliminate noise problems. Whirlwind TRSP-2F transformers are used throughout. (*Line level signal MUST be provided into this passive press box. A microphone directly into the input will not provide enough signal level for proper operation.)

The boxes are constructed with rugged, cold-rolled steel. Dimensions (L x W x D): 6.75" x 5.5" x 2"

Also available with 12 or 24 outputs.

Whirlwind PB06 Specifications:

  • Input Impedance:  2k Ohms
  • Output Impedance:  150 Ohms
  • Operating Level:  0dB input = -43dB output
  • Channel-to-channel Isolation:  65dB between vertically adjacent channel pairs, 107 dB between non-vertically adjacent pairs
