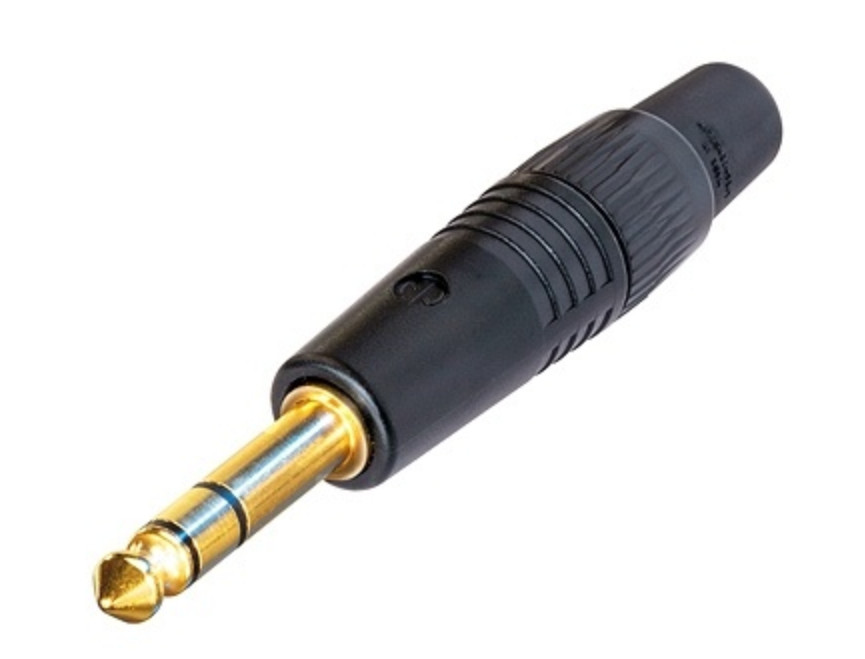

Neutrik NP3C-BAG
Black 3-conductor 1/4" Phone Plug

OUR PART #:  NP3C-BAG

  Plugs / 1/4" Prof. Phone Plugs, C-Series `The lifetime plug` Diecast shell, Neutrik unique chuck-type strain relief with PU-sleeve for optimal cable protection.
Learn More
Our Price: $4.71
List Price: $6.42
Save up to 38% when you order by quantity!
  • Buy 25: $4.26 each.
  • Buy 50: $4.10 each.
  • Buy 100: $3.95 each.
Write the first review.

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Neutrik NP3C-BAG
Qty:
Similar Products

 Plugs / 1/4" Prof. Phone Plugs, C-Series
`The lifetime plug` Diecast shell, Neutrik unique chuck-type strain relief with PU-sleeve for optimal cable protection. Right-angle version with super slim shape, sleeve contact and shell in one piece.

Neutrik NP3C-BAG Specifications:

  • Electrical:
    • Rated current: depends on mating connector
    • Contact resistance: depends on mating connector
    • Insulation resistance - initial: > 2 G , after damp heat test: = 1 G
    • Dielectric strength: 1 kV dc
  • Mechanical:
    • Wiring: solder terminals
    • Wire size: 1 mm² / AWG 18
    • Cable O.D.: 4 - 7 mm
    • Solderability: complies with IEC 68-2-20
  • Materials:
    • Shell ZnAl4Cu1, Ni or black Cr plated
      • RCS: only Ni plated / PA6 50% GR
    • Insulation: PA 6.6 30% GR
    • Contacts: CuZn39Pb3, 2 µm Ni (Su) or gold plated
    • Chuck: POM
    • Bushing: POM + PU
    • Temperature range: -20°C to +65°C
