Neutrik NC5FX-B
5-Pin Black XLR-F Cable Connector with Gold Contacts

OUR PART #:  NC5FX-B

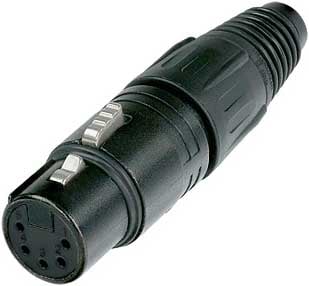

Neutrik's NC5FX-B is a 5-pole XLR-F cable connector with black metal housing and gold contacts.
Learn More
Our Price: $8.01
List Price: $10.86
Save up to 38% when you order by quantity!
  • Buy 25: $7.24 each.
  • Buy 50: $6.98 each.
  • Buy 100: $6.72 each.

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Neutrik NC5FX-B
Qty:
Similar Products

Neutrik's NC5FX-B is a 5-pole XLR-F cable connector with black metal housing and gold contacts.

This "industry standard" XLR cable connector is easy to assemble with only 4 parts and no screws.  Compact design with sturdy diecast shell, fiberglass reinforced hard plastic insert and chuck type strain relief for secure clamping of all cables.

Features:

  • Rugged zinc diecast shell, long lasting and durable
  • Chuck type strain relief system for secure clamping of cables
  • Boot with rubber gland gives high protection against bending stresses
  • Coloured rings and boots available for coding and marking
  • UL recognized components

Specifications:

  • Capacitance between contacts: = 7 pF
  • Contact resistance: = 3 mOhm (inner)
  • Dielectric strength: 1,5 kVdc
  • Insulation resistance: > 2 GOhm (initial)
  • Rated current per contact: 7,5 A
  • Rated voltage: 50 V
  • Cable O.D.: 3.5 - 8.0 mm
  • Insertion force: = 20 N
  • Withdrawal force: = 20 N
  • Lifetime: > 1000 mating cycles
  • Wiresize: max. 1.0 mm²
  • Wiresize: max. 18 AWG
  • Wiring: Solder contacts
  • Locking device: Latch lock
  • Boot: Polyurethane
  • Bushing: Polyamide (PA 6 15% GR)
  • Contact plating: 0.2 µm Au hard alloy over 2 µm Ni
  • Contacts: Brass (CuZn39Pb3)
  • Insert: Polyamide (PA 6.6 30 % GR)
  • Locking element: St3K32 (latch) / Ck 67 (spring)
  • Shell: Zinc diecast (ZnAl4Cu1)
  • Shell plating: Black chromium
  • Strain relief: Polyacetal (POM)
  • Approvals: UL
  • Flammability: UL 94 HB
  • Standard compliance: IEC 61076-2-103
  • Protection class: IP 40
  • Solderability: Complies with IEC 68-2-20
  • Temperature range: -30 °C to +80 °C
