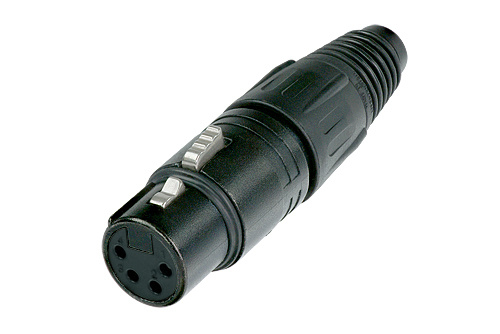

Neutrik NC4FX-BAG 4-pin XLRF Cable Connector, Black

Neutrik's NC4FX-BAG is a 4-pin female XLR cable connector with black metal housing and silver contacts.

Neutrik NC4FX-BAG Specifications:

• Electrical :
  • Number of contacts: 4
  • Contact resistance: = 3 mOhm
  • Insulation resistance, initial: > 2 GOhm; after damp heat test: > 1 GOhm
  • Dielectric strength: 1500 V dc
  • Rated current: 10 A
  • AWG: 1.5 mm²/16 AWG
  • Capacitance between contacts: = 7 pF
• Mechanical :
  • Lifetime: > 1000 cycles
  • Insertion / withdrawal force: = 20 N
  • Cable O.D. range: 3.5 mm - 8.0 mm
• Material :
  • Shell: ZnAl4Cu1, gal Ni over Cu plating
  • Insert: PA 6.6 30% GR (glass reinforced)
  • Contacts: CuZn39Pb3
  • Contact surface: gal 2 µm Ag
  • Latch lock (female): St3K32
  • Strain-relief clamp: POM
  • Antikink bushing: PUR
• Environmental :
  • Temperature range: -30°C to + 80°C
  • Flammability: UL 94HB
  • Solderability: complies with IEC 68-2-20
