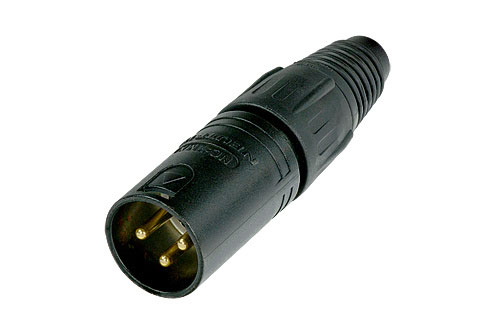

Neutrik NC3MX-B
3-Pin Black XLR-M Cable Connector, Black with Gold Contacts

OUR PART #:  NC3MX-B

The "industry standard" XLR cable connector, easy to assemble with only 4 parts and no screws.
Learn More
Our Price: $3.92
List Price: $5.29
Save up to 38% when you order by quantity!
  • Buy 25: $3.54 each.
  • Buy 50: $3.41 each.
  • Buy 100: $3.29 each.

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Neutrik NC3MX-B
Qty:
Similar Products

The "industry standard" XLR cable connector, easy to assemble with only 4 parts and no screws. Compact design with sturdy diecast shell, fibreglass reinforced hard plastic insert and chuck type strain relief  for secure clamping of all cables.

Features:

  • Rugged zinc diecast shell, long lasting and durable Chuck type strain relief system for secure clamping of cables
  • Boot with rubber gland gives high protection against bending stresses
  • Coloured rings and boots available for coding and marking
  • UL recognized components

Specifications:

Electrical

  • Capacitance between contacts: <= 4 pF
  • Contact resistance: <= 3 mOhm (inner)
  • Dielectric strength: 1,5 kVdc
  • Insulation resistance: > 2 GOhm (initial)
  • Rated current per contact: 16 A
  • Rated voltage: 50 V

Mechanical

  • Cable O.D.: 3.5 - 8.0 mm
  • Insertion force: less than or equal to 20 N
  • Withdrawal force: less than or equal to 20 N
  • Lifetime: > 1000 mating cycles
  • Wiresize: max. 2.5 mm²
  • Wiresize: max. 14 AWG
  • Wiring: Solder contacts
  • Locking device: Latch lock

Material

  • Boot: Polyurethan
  • Contact plating: 0.2 µm Au hard alloy over 2 µm Ni
  • Contacts: Brass (CuZn39Pb3)
  • Insert: Polyamide (PA 6.6 30 % GR)
  • Locking element: Zinc diecast (ZnAl4Cu1)
  • Shell: Zinc diecast (ZnAl4Cu1)
  • Shell plating: Black chromium
  • Strain relief: Polyacetal (POM)

Environmental

  • Approvals: UL
  • Flammability: UL 94 HB
  • Standard compliance: IEC 61076-2-103
  • Protection class: IP 40
  • Solderability: Complies with IEC 68-2-20
  • Temperature range: -30 °C to +80 °C
