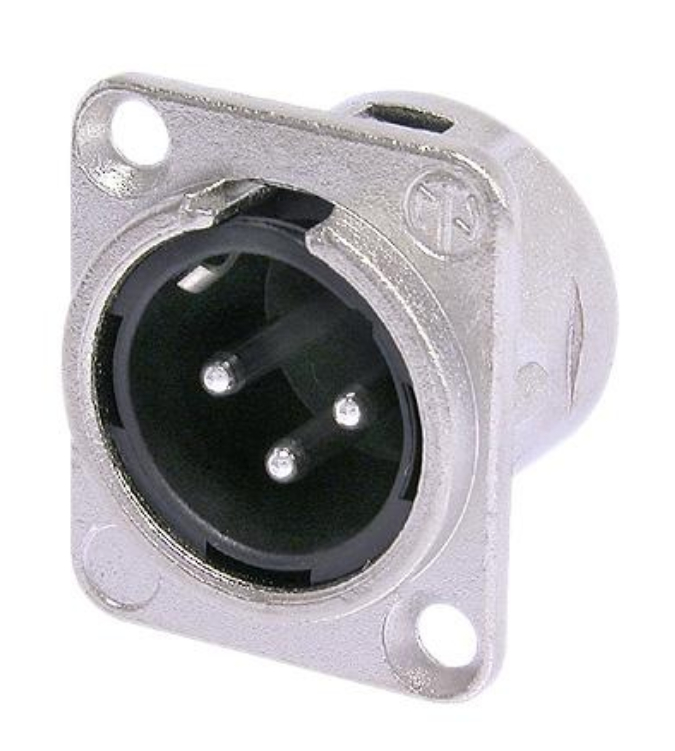

Neutrik NC3MD-L-1
3-Pin Male XLR Chassis Connector in Nickel Housing with Silver Contacts and Solder Cups

OUR PART #:  NC3MDL-1

Neutrik's NC3MD-L-1 is a DL Series 3-pin male XLR chassis connector with solder cups. Unified metal shell for male and female.  RF-protected.
Learn More
Our Price: $2.71
List Price: $3.92
Save up to 42% when you order by quantity!
  • Buy 25: $2.45 each.
  • Buy 50: $2.36 each.
  • Buy 100: $2.27 each.

4.0 / 5

★★★★★ 1 Review. Write Yours

Related Products

Neutrik's NC3MD-L-1 is a DL Series 3-pin male XLR chassis connector with solder cups. Unified metal shell for male and female.  RF-protected. UL recognized component.

Neutrik NC3MD-L-1 Specifications:

  • Electrical Specifications:
    • Number of contacts: 3
    • Rated voltage: 50 V AC
    • Contact resistance: = 5 mOhm
    • Insulation resistance:
      • initial: > 2 GOhm
      • after damp heat test: > 1 GOhm (IEC 68-2-30)
    • Dielectric strength: 1500 V
  • Mechanical Specifications:
    • Lifetime: > 1000 mating cycles
    • Insertion / withdrawal force: = 20 N
    • Separating force: = 20 N
    • Rated current: 16 A
    • AWG: 2.5 mm²/14 AWG
    • Capacitance between contacts: = 4
  • Materials:
    • Shell: ZnAl4Cu1, gal Ni or black Cr plating
    • Insert: PA 6.6 30% GR (glass reinforced)
    • Contact surface: gal 2 µm Ag or gal 0.2 µm Au hardalloy over 2 µm Ni
    • Latch lock & spring: CK 67 steel, treate
  • Environmental Specifications:
    • Temperature range: -30° C to + 80° C
    • Flammability: UL 94HB
    • Solderability: complies with IEC 68-2-20
