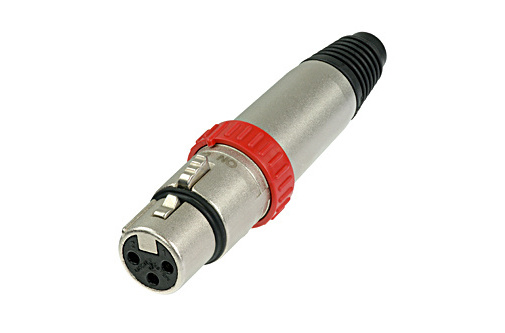

Neutrik NC3FX-S
3-Pin XLR Female Connector with On-Off Rotary Switch

OUR PART #:  NC3FX-S

Female with noiseless ON-OFF rotary switch (shorts no. 2 and 3). FX connector with noiseless ON-OFF switch short-circuiting contacts 2+3.
Learn More
Sale Price: $8.59
List Price: $13.90
Save up to 41% when you order by quantity!
  • Buy 100: $8.27 each.
Write the first review.
Neutrik NC3FX-S
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!
Related Products

Female with noiseless ON-OFF rotary switch (shorts no. 2 and 3).

FX connector with noiseless ON-OFF switch short-circuiting contacts 2+3. For use with a microphone without switch.

Electrical Specifications:

  • Number of contacts: 3
  • Contact resistance: = 3 m ohm
  • Insulation resistance, initial: > 2 G ohm; after damp heat test: > 1 G ohm
  • Dielectric strength: 1500 V dc
  • Rated current: 16 A
  • AWG: 2.5 mm²/14 AWG
  • Capacitance between contacts: = 4pF

Mechanical Specifications:

  • Lifetime: >1000 cycles
  • Insertion / withdrawal force: = 20 N
  • Cable O.D. range: 3.5 mm - 8.0 mm

Material Specifications:

  • Shell: ZnAl4Cu1, gal Ni or black Cr over Cu plating
  • Insert: PA 6.6 30% GR (glass reinforced)
  • Contacts: - female: CuSn6
  • Contact surface: gal 2 µm Ag or gal 0.2 µm Au hard alloy over 2 µm Ni
  • Latch lock (female): St3K32
  • Strain-relief clamp: POM
  • Antikink bushing: PUR

Environmental Specifications:

  • Temperature range: -30° C to + 80° C
  • Flammability: UL 94HB
  • Solderability: complies with IEC 68-2-20
