Atlas Sound MVX-193
19" Rackmount Monitor Panel 2RU with 3" Speaker

OUR PART #:  MVX-193

The Atlas Sound MVX-193 monitor panels features a VU meter and 3" diameter loudspeaker equipped for connection to 70.7 or 25-volt lines.
Learn More
Our Price: $391.99
List Price: $488.99
You save 20%!
Write the first review.
Atlas Sound MVX-193
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!
Related Products

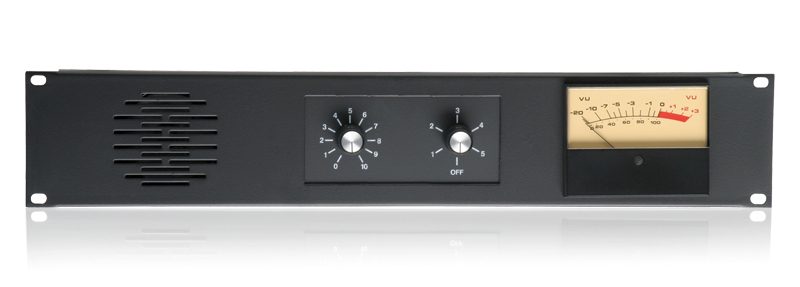

The Atlas Sound MVX-193 monitor panels features a VU meter and 3" diameter loudspeaker equipped for connection to 70.7 or 25-volt lines. To enable monitoring of up to five program channels, unit include a 6-position, double pole switch with a positive "off" position and a volume control for adjusting the level of the monitor loudspeaker. Each monitored circuit connects to two rear-mounted screw terminals. The VU meter is of moving coil design and include a type "A" meter scale with rear-mounted control for setting unit to 0 dB. Meter is covered by a protective thermoplastic case. Attractive front panel is 16-gauge CRS with a unique stamped grille design. Front-mounted volume control and channel selectors are furnished on a black plate with white nomenclature. Assemblies are factory wired and finished in textured black enamel 2RU height.

Atlas Sound MVX-193 Features:

  • Effective Sound and VU Meter Monitoring for Control Centers of Commercial and Professional Sound Systems
  • Integral 3" Diameter Loudspeaker for Monitoring 70.7 or 25-VoltLines

Atlas Sound MVX-193 Specifications:

  • Rack Units: 2
  • Channels: 5
  • Height: 3 1/2" (8.89 cm)
  • Width: 19" (48.26 cm)
  • Depth: 4" (10.16 cm)
  • Shipping Weight: 5.00 lbs (2.27 kgs)
