Audio-Technica MT830R Omni Condenser Lavalier Mic with AT8538 Power Module

OUR PART #: MT830R MFR #: MT830R

Copied to clipboard

Enjoy excellent sound pickup in an unobtrusive design Whether it's hidden in loose clothing, in the hair, or worn as a lavalier... ...Read more

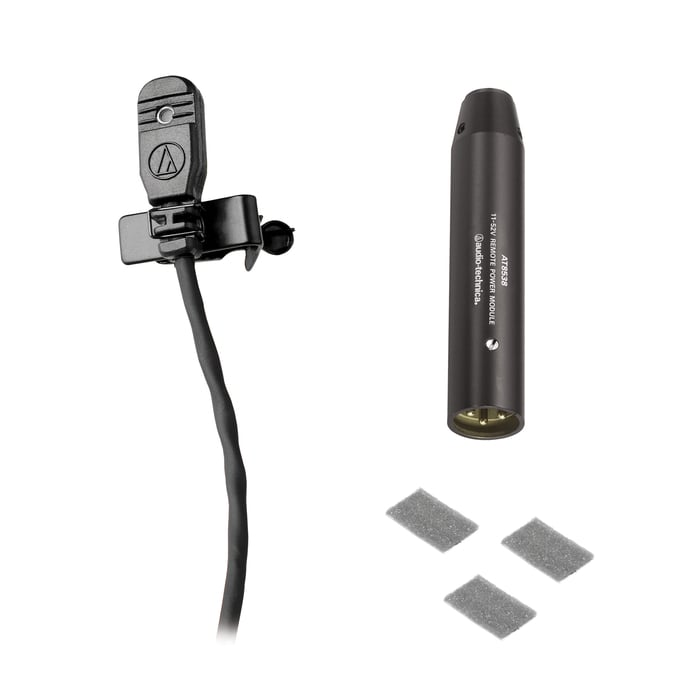

Audio-Technica MT830R Omni Condenser Lavalier Mic With AT8538 Power Module Image 1
Audio-Technica MT830R Omni Condenser Lavalier Mic With AT8538 Power Module
No longer available at Full Compass
We've left this page up for reference only.

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Accessories

Product Overview

Enjoy excellent sound pickup in an unobtrusive design

Whether it's hidden in loose clothing, in the hair, or worn as a lavalier, the MT830R omnidirectional condenser lavalier microphone delivers high intelligibility for voice pickup. This subminiature mic from Audio-Technica has wide-range capability that ensures clean, accurate reproduction, while its small size provides excellent-yet-unobtrusive sound pickup. It includes a 25' (7.6m) permanently-attached miniature cable, and operates on phantom power only.

Applications

Lecturers • Stage/TV performers • Singers

Includes

  • MT830R Omnidirectional Mic
  • AT8533 Power Module
  • Clothing Clip
  • Windscreens

Features

  • Designed to be hidden in loose clothing, in the hair, or worn as a lavalier
  • Wide-range capability ensures clean, accurate reproduction
  • Small size provides excellent-yet-unobtrusive sound pickup
  • Rugged design and construction for reliable performance
  • UniSteep® filter provides a steep low-frequency attenuation to improve sound pickup without affecting voice quality
  • 25' (7.6m) cable permanently attached to mic, TA3F connector at power module

Specifications

  • Color: black
  • Element: Fixed-charge back plate, permanently-polarized condenser
  • Polar Pattern: omnidirectional
  • Frequency Response: 30Hz - 20kHz
  • Open Circuit Sensitivity: -34dB (19.9mV) re 1V @ 1Pa
  • Impedance: 200Ω
  • Maximum Input Sound Level: 131dB SPL (sound pressure level), 1kHz @ 1% T.H.D.
  • Dynamic Range (typical): 107dB, 1kHz @ Max SPL
  • Signal-to-Noise Ratio: 70dB, 1kHz @ 1Pa
  • Phantom Power Requirements: 9-52VDC, 2mA, typical
  • Weight: 0.05oz. (1.3g)
  • Dimensions, microphone (L x W x D): 0.62" x 0.33" x 0.19" (15.8 x 8.3 x 5mm)
  • Cable: 25' (7.6m) permanently attached to mic, TA3F connector at power module
  • Note: further information can be found within the items located under the "Documentation" tab above.
