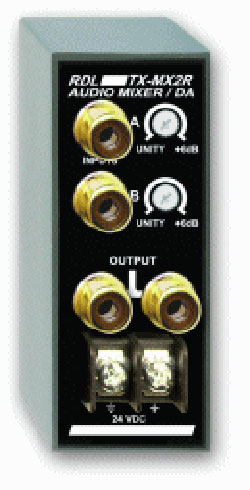

Radio Design Labs TX-MX2R
Audio Mixer/Distribution Amplifier

OUR PART #  TXMX2R

Our Price: $81.52
List Price: $109.04
You save 25%! (Low Price Guarantee)
Usually ships in 7-14 business days.
Need it sooner? Call us!

Recommended Accessories

Radio Design Labs' TX-MX2R is the ideal choice in installations requiring the active, isolated mixing of two unbalanced line-level audio sources to feed either one or two unbalanced destinations.

The input circuits are high-impedance, line-level (-10 dBV) and are each isolated from each other. Therefore the modules may be used to bridge an unbalanced stereo source without affecting the stereo separation. Each output from the TX-MX2R is a mono mix of the stereo signal. Normally, the gain trimmers are set to unity gain. If either channel is low, the gain of that channel may be adjusted up to 6 dB.

NOTE: Radio Design Labs' PS-24AS power supply is NOT included but is required in order to power this product.  Please see the "Accessories" tab or click here for more information on the PS-24AS power supply.

The TX-MX2R may also be used to mix two separate sources into a single output. The mixing circuit in the module is an active summing amplifier.

The output driver provides two separate, identical output signals from the input signal or signals. This output distribution amplifier therefore allows the TX-MX2R to be used as a two-output audio distribution amplifier. If it is desired to distribute a single source to two destinations, one of the inputs may be left unused without any loss of performanc

Features:

  • Mix 2 unbalanced mono signals
  • Combine stereo into mono
  • Gain trim for each input
  • Two active isolated outputs from the input signal (s)
  • Isolation between inputs
  • High-Quality unbalanced audio

Typical Performance:

  • Inputs (2): -10 dBV
  • Input Impedance: 10 k-ohms
  • Noise: < -75 dB (referenced to -10 dBV)
  • THD+N: < 0.05% (0.01% typical)
  • Frequency Response: 25 Hz to 45 kHz (+/- 0.5 dB);  15 Hz to 70 kHz (+/- 1 dB)
  • Gain (per channel): Unity to +6 dB nominal (adjustable)
  • IMD: 0.01% typical
  • Outputs (2): 100 ohms unbalanced, -10 dBV to drive low or high impedance unbalanced lines
  • Headroom: > 27 dB (24 Vdc supply);  > 18 dB (12 Vdc supply)
  • Power Requirement: GROUND-REFERENCED, 12 to 33 Vdc @ 10 mA
