Sennheiser ME 64 Cardioid Capsule for K6 and K6P Powering Modules

OUR PART #: ME64 MFR #: 003282

Copied to clipboard

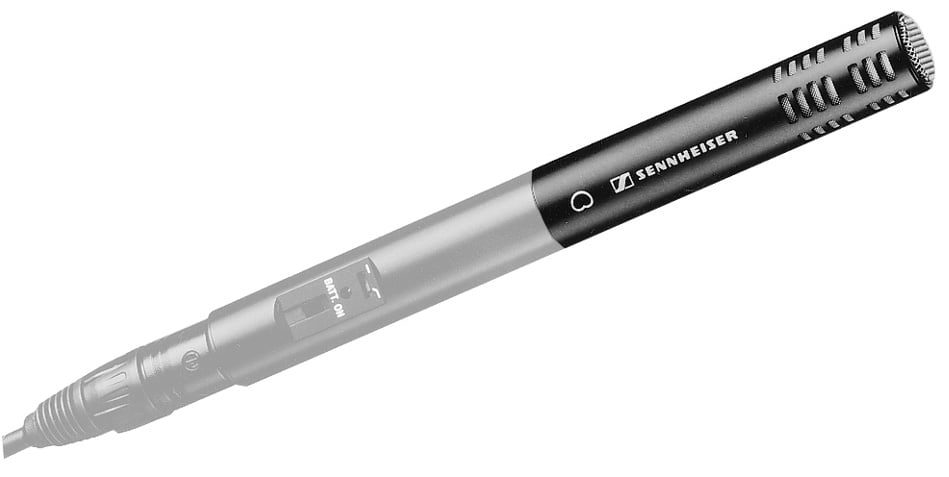

Sennheiser ME 64 Cardioid Capsule For K6 And K6P Powering Modules Image 1
Sennheiser ME 64 Cardioid Capsule For K6 And K6P Powering Modules
No longer available at Full Compass
We've left this page up for reference only.

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Product Overview

The Sennheiser ME64 is a back-electret cardioid microphone capsule designed for use with the K6 and K6P powering modules (K6 and K6P sold separately-contact your sales representative for more information). IIt comes in a matte black, anodized, scratch-resistant finish.

Sennheiser ME 64 Features:

  • Excellent directivity across whole frequency range
  • Very good feedback rejection
  • Effective rejection of incidental rear noise
  • High speech clarity
  • High maximum sound pressure level
  • Wide frequency range
  • Integrated pop filter

Sennheiser ME 64 Specifications:

  • Dimensions: Dia 22.5 x 106mm
  • Frequency response (microphone): 40Hz - 20kHz, ± 2.5dB
  • Sensitivity in free field, no load (1kHz): 31mV/Pa ± 2.5 dB
  • Nominal impedance: 200Ω (K6)
  • Min. terminating impedance: 1000Ω (K6)
  • Equivalent noise level: 16dB
  • Equivalent noise level weighted as per CCIR468-3: 25dB
  • Maximum sound pressure level (passive): 130dB /1kHz (K = 1%)
