Product Overview

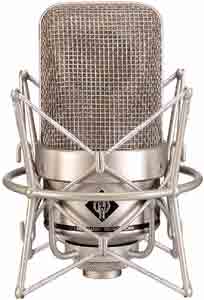

Neumann's M150 Tube takes many of the features from their original M50 and incorporates them in a very modern microphone. With low self noise, a Titanium membrane and capsule, transformerless tube amplifier and sophisticated power supply, the M 150Tube is not a reissue, but an entirely new microphone in its own right.
Ideal for DECCA tree recording and surround miking techniques.
Includes
- M150 Tube Microphone
- N149A Power Supply
- EA170 Shock Mount
- KT8 Connecting Cable
- Aluminum Case
Features:
- All Titanium capsule
- Unparalleled transient accuracy
- Pressure omni capsule for extended low frequency response
- Transformerless tube amplifier
- Very low self noise of 15dB-A
- Stereo sets with consecutive serial numbers
- Acoustical:
- The Titanium diaphragm of the pressure capsule is 12mm in diameter and is exceedingly thin. Although Titanium has been known to have unique and desirable characteristics for some time, it has, until very recently, been very difficult to procure in the quality necessary for use in a microphone of this type.
- The head-grille is shaped just like that on the original M 50, as requested by various top engineers in the recording industry. Due to mounting the pressure capsule with the diaphragm flush to the surface of a small (40 mm) sphere, the directional characteristic of the M150 Tube is entirely unique.
- At the lowest frequencies, this system is a pure omnipressure transducer with a perfectly circular polar pattern. However, in the mid- and upper frequencies, the pickup pattern becomes more narrow. The M 150 Tube is an ideal microphone for any stereo, 5.1 or 7.1 surround recording, particularly DECCA Tree technique.
- Electrical:
- The dynamic range of the M150 Tube is 119dB, allowing reproduction of the full musical expression, without restraint.
- With a low self noise of 15dB-A, more gain can be used without risk of adding noise to the final product. The transformerless output circuit of this microphone allows for extremely fine reproduction of small signals and low frequency information. Also, long cable runs can be used with no loss of signal quality.
Specifications:
- Acoustical operating principle: Pressure transducer
- Directional pattern: Omnidirectional
- Frequency range: 20Hz - 20kHz
- Sensitivity at 1kHz into 1kohm: 20mV/Pa
- Rated impedance: 50Ω
- Rated load impedance: 1kΩ
- Equivalent noise level, CCIR*: 28dB
- Equivalent noise level, A-weighted*:15 dB-A
- Signal-to-noise ratio, CCIR* (rel. 94dB SPL): 66dB
- Signal-to-noise ratio, A-weighted* (rel. 94dB SPL): 79dB
- *According to IEC 60268-1; CCIR-weighting according to CCIR 468-3, quasi peak; A-weighting according to IEC 61672-1, RMS
- Typical SPL (tube characteristic)**: K < 0.5%: 114dB, K < 5%: 134dB
- **Measured as equivalent elec. input signal
- Maximum output voltage: 8dBu
- Dynamic range of the microphone amplifier (A-weighted): K < 0.5% *: 99dB, K < 5%: 119dB
- Powering: Power supply N149A
- Matching connector microphone: 8-pin DIN female
- Matching connector power supply: 3-pin XLR-F
- Weight: 800g
- Diameter: 78mm
- Length: 165mm
