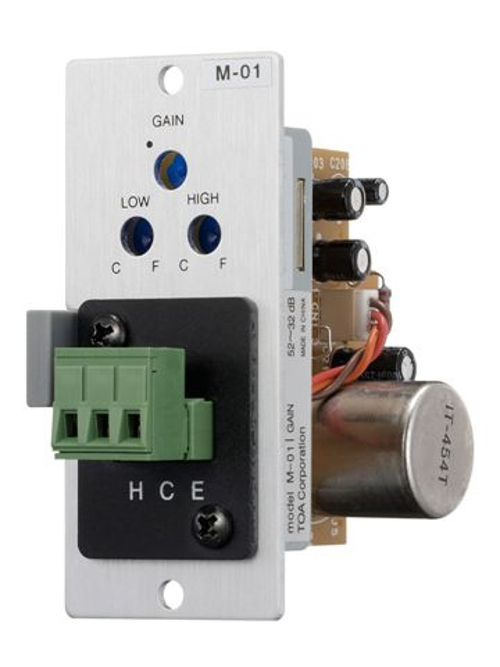

TOA M-01S
900 Series Microphone Input Module with Removable Terminal Block Connector

OUR PART #  M01S

Our Price: $58.31
List Price: $72.16
You save 19%! (Low Price Guarantee)
In Stock

The TOA M-01S is a 900 Series microphone input module with removable terminal block connector that is designed for low impedance microphones.

TOA M-01S Specifications:

  • Power Source: 24 V DC (supplied from the main frame)
  • Current Consumption: 9 mA
  • Controls/Functions:
    • Gain Control
    • High and Low Cut Filters
    • Phantom Power
  • Performance Input: 600 tb
  • Input Sensitivity: -70 to +50 dBu
  • Input Impedance: 600 Ohms, balanced transformer-isolated
  • Frequency Response: 25 Hz - 20 kHz ±2.0 dB
  • Distortion: 0.05% or less (1 kHz, output: 0 dB)
  • Noise Level: -86 dB (20 Hz - 20 kHz BPF)
  • Gain (adjustable): 32 to 52 dB
  • Maximum Input: -14 dB
  • Signal to Noise (S/N): -126 dBu (EIN 200 Ohms)
  • Physical Connector: Removable terminal block
  • Dimensions: 1.38" x 3.07" x 3.46" (35 x 78 x 88 mm)
  • Weight: 0.24 lbs (110 g)

TOA M-01S
900 Series Microphone Input Module with Removable Terminal Block Connector

OUR PART #  M01S

Product Information:

The TOA M-01S is a 900 Series microphone input module with removable terminal block connector that is designed for low impedance microphones.

TOA M-01S Specifications:

  • Power Source: 24 V DC (supplied from the main frame)
  • Current Consumption: 9 mA
  • Controls/Functions:
    • Gain Control
    • High and Low Cut Filters
    • Phantom Power
  • Performance Input: 600 tb
  • Input Sensitivity: -70 to +50 dBu
  • Input Impedance: 600 Ohms, balanced transformer-isolated
  • Frequency Response: 25 Hz - 20 kHz ±2.0 dB
  • Distortion: 0.05% or less (1 kHz, output: 0 dB)
  • Noise Level: -86 dB (20 Hz - 20 kHz BPF)
  • Gain (adjustable): 32 to 52 dB
  • Maximum Input: -14 dB
  • Signal to Noise (S/N): -126 dBu (EIN 200 Ohms)
  • Physical Connector: Removable terminal block
  • Dimensions: 1.38" x 3.07" x 3.46" (35 x 78 x 88 mm)
  • Weight: 0.24 lbs (110 g)
