Canare L4E5C-200M-BLACK
Star Quad Microphone Cable, 200 Meters

OUR PART #:  L4E5C-200M-BLACK

The Canare L-4E5C is a narrow profile version of Canare's L-4E6S Star Quad cable ( sold separately )...
Learn More
Our Price: $276.08
List Price: $290.00
You save 5%!
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Canare L4E5C-200M-BLACK
Qty:
In Stock

Similar Products

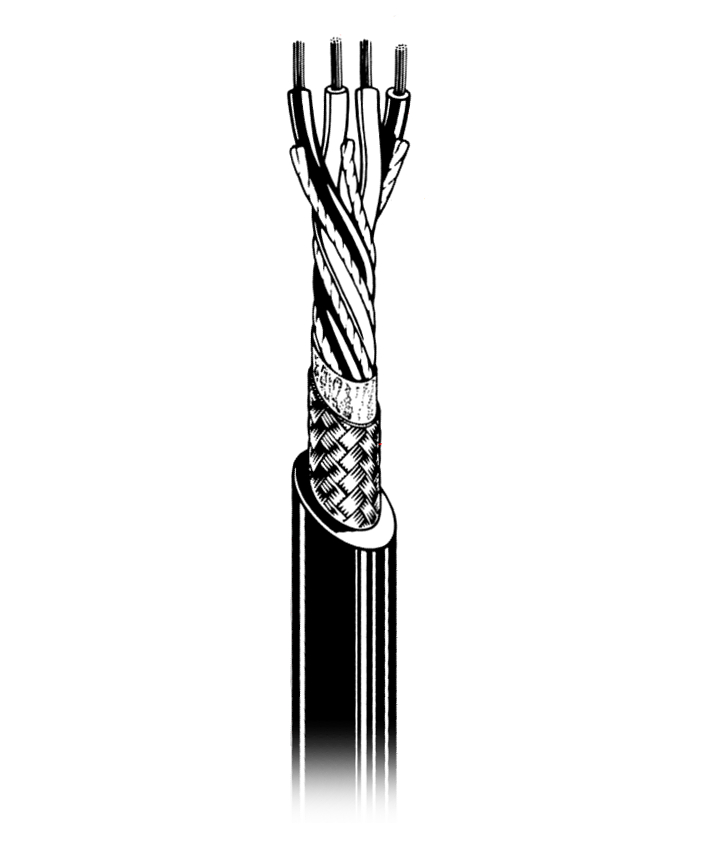

The Canare L-4E5C is a narrow profile version of Canare's L-4E6S Star Quad cable (sold separately), designed for all handheld microphone applications in a 200 meter length. Flexible, satin smooth to the touch and extra strong, this standard diameter, 26 AWG cable fits perfectly in all XLR-type audio connectors. Forty separate strands in each conductor eliminate breakage due to flexing.

Available in 10 matte finish color jackets:

  • Standard: Black
  • Available color options: Blue, Gray, Green, Orange, Red, Yellow

Applications:

  • Microphones
  • Portable Applications
  • Audio Rack Wiring
  • PA Systems
  • Audio Patch Cords
  • Braided Copper Shield
  • Flexible in Extreme Cold Weather
  • Cross Linked PE Insulation
  • Reduced Handling Noise
  • Rejects EMI and RFI
  • 10 Matte Color Jacket Selections

Canare L-4E5C Specifications:

Mechanical:

  • 0.189" OD, 26awg, 4c, 96% braided shield.
  • Standard Length: 656ft (200m)
  • Standard Weight./Length: 18 lbs (8 kg)
  • Nom. O.D.: .189" (4.80mm)
  • Jacket Nom. Thickness: PVC .032" (0.80mm)
  • Brittle Point: -56° F (-49° C)
  • No. of Cond.: 4: 2 Blue, 2Wht
  • Insulation Type*, thickness: IPE, 11.8 mil
  • Cond-AWG (Qty./mil) Cross Sec. Area mil.² **Quad AWG: IPE: AC - #26 30/3.15 232.5 #23
  • Pitch Twist Quad: .71" (18mm)
  • Shield Coverage: >96% TAC Braid

*Dielectric Strength = 500V AC/1min. Insulation Resistance/3Mft = >1000M ohm.
**Effective AWG of combined twin conductors.

Electrical Performance/Quad:

  • Cond. D.C.R: <39.7 ohm/1000ft (<13.0 ohm/100m)
  • Shield D.C.R: <7.6 ohm/1000ft (<2.5 ohm/100m)
  • Nominal Capacitance***: 162 pF/m
  • Nominal Capacitance†: 200 pF/m
  • Nominal Impedance: 40 Ohms
  • Nominal Attenuation: 0.9 V/1000ft (0.3 V/100m)
  • Group Delay Time: 1.71 nS/ft (5.6 nS/m)

***Capacitance between twin Blue and twin White conductors.
†Capacitance between conductors to shield.
